HDPE Waterproof Geomembrane Extrusion Production Line

Product Description

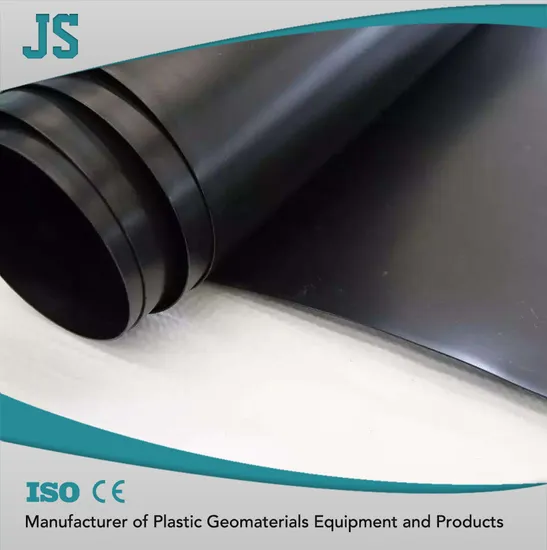

JUNSHENG HDPE waterproof geomembrane extrusion production line
can produce the plastic geomembrane with thickness from 0.3 to 5mm
and width of 4000 to 8000mm, the geomembrane can be monolayer, multilayer, both side smooth or embossing surface and laminated with non-woven fabric, the thickness of the geomembrane is uniform.
It's widely used in waterproofing field in industrial & civil buildings including the green roof, flat roof and the
sloping roof. Underground waterproof: reservoir, dam, pool, tunnel, grain depot, artificial engineering, landfill, artificial
lake.
Product Description
Plastic Geomembrane Production Line: A Comprehensive Guide
Plastic geomembrane production lines are used to produce a variety of plastic geomembranes for a variety of applications. These production lines are designed to produce high-quality geomembranes that are used in a variety of industries, including construction, agriculture, and environmental protection.
The production line consists of several components, including a plastic extruder, a cooling system, a cutting machine, and a winding machine. The plastic extruder is used to melt the plastic material and form it into a sheet. The cooling system is used to cool the plastic sheet and ensure that it is of the desired thickness. The cutting machine is used to cut the plastic sheet into the desired shape and size. Finally, the winding machine is used to roll the plastic sheet into a roll.
The production line also includes a number of other components, such as a heating system, a cooling system, a tension control system, and a control system. The heating system is used to heat the plastic material before it is extruded. The cooling system is used to cool the plastic sheet after it is extruded. The tension control system is used to ensure that the plastic sheet is of the desired thickness. Finally, the control system is used to monitor the production process and ensure that the plastic sheet is of the desired quality.
The production line is designed to produce high-quality geomembranes that are used in a variety of industries. It is important to ensure that the production line is properly maintained and operated in order to ensure that the geomembranes produced are of the highest quality.

Product Parameters
Main Technical Specification

Model		JS-TGM4000	JS-TGM5000	JS-TGM6000	JS-TGM8000
Suitable material		HDPE, PP, PVC
Screw dia.	mm	150	150×2	150×2	180×2
L/D ratio	L/D	33:1	33:1	33:1	33:1
Product width	mm	4000	5000	6000	8000
Product thickness	mm	0.2-2.5
Output	Kg/h	600	1000	1000	1200
Line speed	m/min	4--6	4--8	4--8	4--10
Installed capacity	KW	320	550	550	680
Power consumption	KW	220	300	300	400
Dimensions (L×W×H)	m	22×5×2.8	24×7×3.5	24×7.5×3.5	25×10×3.5
Total weight	T	22	25	28	35
