Good Quality 2L 5L Lubricant HDPE PP PE Bottles Automatic Extrusion Blow Molding Machine

Product Description

Product Description
DAWSON MACHINERY & MOULD GROUP

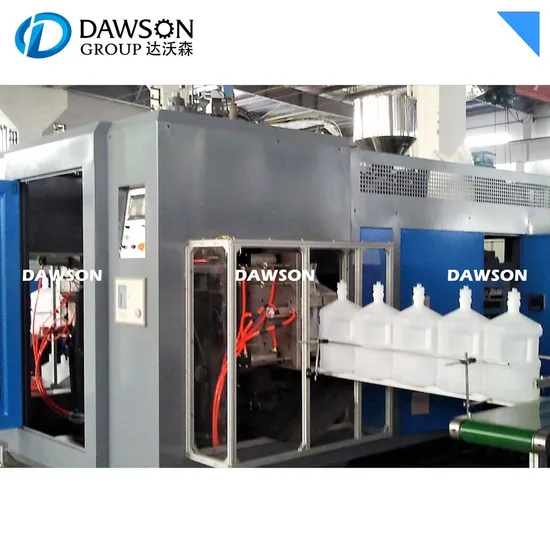

4 Gallon Bottle Extrusion Blow Molding Machine ABLB90
suitable for making plastic bottle, blowing jars, blow molding small containers, jerrycans from 5L to 20L,
The whole blow molding machine is equipped with the bilingual operation panel
and automatic configuration from world-famous brands to realize the advantages of simple operation
and high automation.

Machine Model		Max. Bottle size	Production forecast
ABLB90	Double Station Single Head	4 gallon	200~230 BPH
	Single Station Single Head	4 gallon	120~150 BPH

Technical Parameters

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	20L
	Output capacity	200~230 pcs/h
	Size	4.6×3×2.4(M)
	Weight	8.2T
system	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw	∮90mm,L/D ratio 25, 38CrMoALA	Cooling system available
	Plasticization	130Kg/H	HDPE
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	8KW/H
	Extrusion Motor	Three phase asynchronous motor (380V,50HZ)
	Cooling Fan	4zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	∮180mm
	Heating zone	4 Stainless steel heating cycle
	Heating power	5~7KW
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mould opening and clamping system
	Clamping force	108KN
	Template distance	240~660mm
	Max mould size	530X550mm
	Mould material	High grade 50# steel
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)	Japanese Mitsubishi PLC system
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Temperature control	Automatic temperature control module
	Movement control	Japanese Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	Three phase asynchronous motor 11kw (380V/220V,50/60HZ)
	Oil pump	Imported double pump
	Valves	Imported oil pump valves and connections
	Oil pipes	Double layer overpressure resistant
	System pressure	60Kg/cm²
	Cooling system	Separate water cooling cycle, oil cooler cooling system
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.6Mpa
	Air displacement	0.9M3/min
	Electromagnetic valve	Taiwan AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	90L/min
	Water pressure	0.3-0.6MP

Detail Images
Clamping system
Lastest Euro style toggle type clamping system
Bigger platen size capable of carriage more giant molds.
Stronger clamping force can make the blow molding item bottle joint line finish smoother.
More precision carriage stroke and easier to adjust.
All casting processes ensure a longer life for the clamping system.
Control system

Lastest Taiwan Wisetech control system
Intelligent man-machine system & easy operation
Parison controls 100 points available for parison thickness control
Available self-diagnose function in function pages.
Flexible to upgrade and change the program through USB.
Available to add different languages for better service customers.
Taiwan keyboard & Emergency stop function.
Product and mold parameters are saving available.
Extrusion & Heating
High quality Bimetallic screw specialized for HDPE,PP or PVC PC
The highest quality motor MengMiu from China for extrusion motor.
Pre-heating & temperature protect function available in the system.
Heater is adapting high quality ceramic heating technology.
Energy saving & high efficiency heating, easy to maintenance.
ABB invertor for controlling frequency of screw and reducer.
Available to add hydraulic screen filter system.
Hydraulic System
Hydraulic motor available to upgrade to servo drive Energy saving, low noise & increase working life of hydraulic units.
Latest hydraulic oil design for smooth running of all hydraulic functional parts.
We choose SUMITOMO pump and YUKEN valve as the key hydraulic part to ensure the reliable performance and smooth running of machines.
We use stainless steel oil tank which is to make sure the clean of oil & anti rust.
All our hydraulic units, pumps, pipes valves had a separate mark, which help to identify during future maintenance or changing of spare parts.
Electrical System
All our electrical components are first-class international brands.
Such as Japan Mitsubishi or Taiwan Wisetech, France ,
Japan MOOG, ABB from Europe, Omron relay, Italian Gefran Transducer, Taiwan Delta servo drive controller...
All input and output have monitor system in program, easy and convenient to do future services and technical supports.
The quality standard is in accord with CE standard.
Electrical cabinet equipped with cooling fans for temperature control.
Work Shop
Our professional blow molding machine workshop...
High Quality Mould

High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
