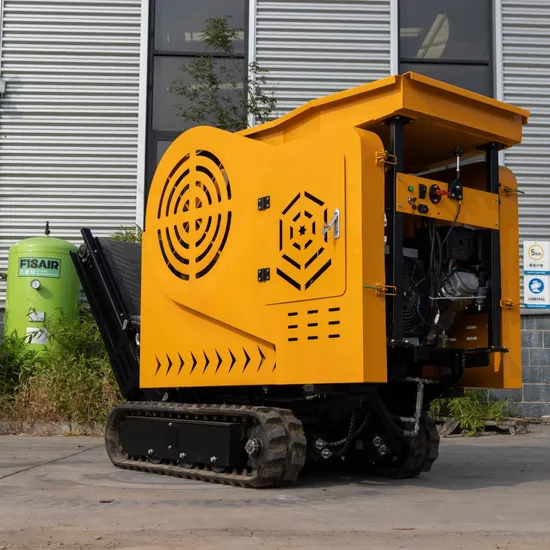

New 1-Year Warranty Diesel Engine for Mining Stone & Small Rock Jaw Crusher Plant Machine with Core Motor Component Jaw Crusher
Basic Info.
Model NO.
430JCHT
Drive
Electric
Feed Size
150mm-299mm
Jaw Plate Material
Carbon Steel
Object
Basalt
Equipment Operation Mode
Manual Hydraulic Valve
Walking Mode
Hydraulically Powered Track Type
Travelling Motor Type
6K-395
Continuous Torque
850
Conveyer Lifting Mode
Manual Operation of Hydraulic Lift
Lubrication Method of Jaw Breaking Mecha
Grease
Output Power
13kw/3600r/Min
Tank Capacity /L
6.5
Fuel Tank Capacity /L
6.5L
Shipping Size(mm)
2100*1000*1750
Working Size(mm)
3200*1000*1620
Transport Package
Wooden Packing
Specification
2590x800x1250 mm
Trademark
HIGHTOP
Origin
China
Production Capacity
1000
Packaging & Delivery
Package Size
199.00cm * 105.00cm * 121.00cm
Package Gross Weight
500.000kg
Product Description
HIGHTOP Hot Sale Stone Crusher Series Parameters A crusher is a machine that breaks large rocks into smaller rocks, gravel, sand or rock dust.We sell Mini Jaw/Cone/Impact/Hammer Crusher Home Price Stone/Rock/Quarry/Asphalt/Granite/Pebbles/Coal Engine Core Ore Mineral Stone Crusher Product Description| Product parameters | |||||
| Working size(mm): | 3200*1000*1620 | Vertical plate inner width (mm): | 380 | ||
| Shipping size(mm): | 2100*1000*1750 | Total outer width of cover(mm) | 960 | ||
| Tracktype(mm): | 180*72*41 | Bunker volume(m3): | 0.25 | ||
| Weight wheel diameter (mm): | 126 | Stacking height(mm): | 700-1150 | ||
| Number of wheels(groups): | 6 | Feeding conveyor(mm): | 1500*500 | ||
| Feed port size(mm): | 220*350 | Gravel range(mm): | 15-50 | ||
| Maximum feed size (mm): | 200 | Travel speed (km/h): | 00-3 | ||
| Track specifications: | Rubber track | Conveyor belt width (mm): | 400 | ||
| Production capacity (T/h tons/hour): | 2T-5T/h | ||||
| Dynamic system Oil type and dosage | |||||
| Gasoline engine standard | Rato R500-V2-18HP | Fuel tank capacity /L | 6.5L | ||
| Output power | 13KW/3600r/min | Oil volume/L | 1.0L | ||
| Tank capacity /L | 6.5 | Hydraulic tank volume/L | 35L 32#/46 | ||
| Operating driving and main accessories parameters | |||||
| Equipment operation mode | Manual hydraulic valve | ||||
| Walking mode | Hydraulically powered track type | ||||
| Travelling motor type | 6K-395 | ||||
| Continuous torque | 850 | ||||
| Hydraulic pump specifications | PGP5108 | ||||
| Conveyor motor model | BMER-300 | ||||
| Conveyer lifting mode | Manual operation of hydraulic lift | ||||
| Lubrication method of jaw breaking mechanism | grease | ||||
| Track tightening adjustment method | mechanical | ||||
