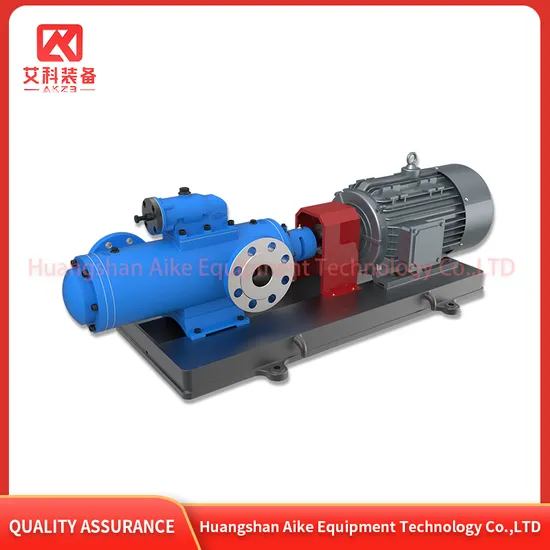

Triple Screw Pump for Feeding Diesel/Fuel Oil in Power Plants Ignition Supply

Product Description

A3MG Series Three-Screw Pump A3MG Series Three-Screw Pump is a self-priming volumetric quantitative pump with maximum differential pressure of up to 120 bar. It is designed for transporting fuel oils,lube oils,hydraulic oils,waxes,tar oils,polyols,isoyanates,paints,lacquers and any non-abrasive, non-corrosive fluids with sufficient lubricating properties. Commonly used in coal-fired thermal power plants, cement plants, glass plants, building materials plants, waste incineration power plants, paper mills, coal-to-gas, coal-to-oil, tire rubber and other industries as oil feed pump, fuel oil booster pump, spray atomization pump, hydraulic pump, start-up oil pump, jacking oil pump, DC emergency oil pump, hydraulic sealing pump, aromatic oil pump,among others.
Performance Paramenters

A3MG Three-Screw Pump
Flow Rate	10-2170	L/min	1-130	m³/h
Outlet Pressure	10-100	bar	1-10	Mpa
Viscosity	1-15000	mm²/s	1-15000	cSt
Temperature	Max.250	ºC	Max.482	ºF

Options Mounting: Horizontal (foot & flange & Side hanging) or Vertical (pedestal & deepwell)
Bearing: Internal (product lubricated) or External (permanently grease picked)
Seal: Mechanical Seal,Paking Seal, Metal Bellows Mechanical Seal, Throttle Bush, Magnetic Drive, Steam Flushing Device
Oil feed pump -Horizontal mounting of foot Turbine oil pump-Horizontal mounting of flange
Hydraulic oil pump- Vertical mounting of column foot Lubricating oil pump-Vertical mounting of Semi-submersible suspension
Application 1.Fuel oil firing/energy engineering
For handling light and heavy fuel oils as well as residual and waste oils, e.g.as fuel oil, transfer,fuelling ,ring-conduit. Used as a burner jet pump on gas turbines.Used in power plants as fuel oil unloading pump, oil feed pump, booster pump, fuel injection pump, ignition supply pump, etc
2.Hydraulics
For pressurizing and pumping hydraulic oil, hydraulic lubricating oil, turbine oil. e.g. as hydraulic pumps for lifts , elevating platforms , pusher centrifuges ,hydraulic presses , forging hammers ,bale presses , chip-board presses , hoists , variable-pitch propeller and rudder adjusting units , hatch hydraulics,roiling mill and machine tool hydraulics
3.Marine/Offshore engineering
For handling Lubricating oil, hydraulic oil, light and heavy fuel oil. e.g. as main lubricating pump, auxiliary lubricating pump, emergency lubricating pump for marine diesel engine. As a fuel supply pump, it is used as a fuel supply pump and a heavy oil injection pump on the Marine boiler to provide power sources for the ship, such as the anchor mechanism dynamic pump and the steering engine steering drive pump
4.General industrial engineering/machine/heavy machine industry
For handling lubricating , cooling ,sealing and regulating. e.g. as lbricating oil pump, Lubricate and cool the machinery; e.g. for steam , gas and water turbines as crculating oil pump, regulating oil pump, control oil pump and jacking oil pump; for compressors as turbine oil pump,sealing oil pump and coolant oil pump; for diesel engine as lubricating oil pump and fuel pump, etc
5.Offshore engineering
For handling lubricating. cooling and hydraulic oils, light and heavy fuel oils, crude oils as well as fuels. e.g. for offshore drilling platform as lubricating oil pump , the hydraulic system is lubricated, circulated and cooled
6.Tank farms
For handling all lubricating fluids such as greases,oils, paints, fuels, polyols,isocyanates;e.g. as loading or unloading pumps
7.Chemical and petro-chemical as well as processing industry
For handling all lubricating fluids such as oils (including crude oils), greases, paint, lacquers, ointments, pastes, polyols,iso­cyanates, tar, bitumen, glycerin, glues, adhesive substances, resins,paraffins, waxes. water glass and also as pipeline pumps
8.Tire rubber/printing/paper industry
For handling aromatics oil, gravure ink, rubber oil, and pulp. e.g. for aromatics oil pump as Rubber factory
A3MG-055/110-AHOKRA-G-A

Outlet Pressure	n=1450rpm				n=2900rpm
	v=6cSt		v=40cSt		v=6cSt		v=40cSt
	Q	P	Q	P	Q	P	Q	P
	L/min	kW	L/min	kW	L/min	kW	L/min	kW
20	183	7.95	199	7.95	395	17.7	411	17.7
30	170	11.5	194	11.5	383	24.7	406	24.7
40	159	15.0	189	15.0	371	31.8	401	31.8
50			184	18.6	360	38.9	396	38.9
60			179	22.1	349	46.0	391	46.0
70			175	25.6			387	53.0
80			170	29.2			382	60.1
90							378	67.2
100							373	74.3

Product advantages 1.Technical Advantages
The A3MG screw pump utilizes the hydraulic balance principle to divert the medium from the high-pressure zone to the low-pressure area, counteracting the axial force on the screw and preventing screw wear, thereby extending its service life.
2.Overload protection
The A3MG screw pump is equipped with a safety valve that effectively controls pump overload or pipeline overload.
3.Structural Advantages
The A3MG screw pump features 5 positioning bushings (made of copper), ensuring stable operation and providing stronger cavitation resistance.
4.Material Adavantages
The A3MG screw pump's bushing is made of aluminum-clad copper, a material with higher wear resistance, making it suitable for the transportation of low-viscosity media (such as diesel and fuel oil).
5.Process Advantages
The screw is the core of the pump. The A3MG screw is made using a special processing technique that enhances the screw's hardness, tensile strength, smoothness, and precision. During the transportation of media, it effectively establishes an oil film, which is fundamental to ensuring the pump's operational lifespan.
6.Easy Maintenance
The A3MG screw pump provides a pump core assembly for easy maintenance, reducing costs.
7.Unique Design
The A3MG screw pump features interchangeable positions for the safety valve and the base, allowing for easy adjustment of the inlet and outlet oil directions. Additionally, to accommodate complex on-site installation requirements, various structural forms have been designed to meet installation needs.
Right to top Right to left Right to right
Left to top Left to left Left to right
Top to top Top to left Top to right
Axial to top Axial to left Axial to right Selection guide To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.

FAQ Q:Can provide customized products?
A: Yes, we can provide customized products. We need you to provide the working conditions and requirements for customization, and you can also provide drawings.
Q: How long does the production cycle take?
A:Delivery time is generally about 15 days, we are a screw pump manufacturer from China, with professional production equipment and production lines, whether you are a dealer or an end user, our manufacturing capacity can meet your needs.
Q: What quotation methods can be offered?
A: EXW, FOB, CIF
Q:What payment methods are available?
A: Support T/T and L/C, 30% payment after order confirmation, 70% payment before delivery.
Q: How long is the warranty period?
A: 1 to 3 years
Q: Can accept factory inspection and factory test verification
A: Yes, we welcome you to visit our factory, which is located in Huangshan, China
Why choose us 1.The initial cost is low, we are a factory, all products are mass production, whether you need one or one hundred sets, we provide the factory price, purchasing here can reduce your procurement cost
2.High energy efficiency, we are a professional screw pump manufacturer, with strict manufacturing standards, can provide different seal forms, reduce the internal leakage of the pump, improve the efficiency of pumping
3.Low maintenance cost, when the screw or bushing wear, can not meet the pumping requirements, we can provide pump core components, easy to replace, compared to re-purchase a pump, the cost is lower
4.Short downtime, when your site failure, we can provide remote support, professional engineers and you to communicate, troubleshoot the site fault, you can use the shortest time to assist you to resume production
5.Long service life, because we have professional and senior technical application engineers to provide you with the correct product selection, scientific product selection and correct necessary working conditions to communicate in order to select the cost-effective three screw pump product configuration, to high life operation and work, for your host equipment to provide scientific and good protection and maintenance.
Instructions for use
Before starting for the first time, please fill the lubricating medium oil to ensure that a good oil film is formed on the surface of the screw pair and spiral groove. If you want to make the service life of the screw pump longer, the following points are very important
1.It is strictly forbidden to tighten the import and export connection flange, so that the base pump body deformation and displacement, damage the inherent accuracy of the pump
2.When configuring the pipeline, it is strictly forbidden to damage the coaxial tightness of the pump and the motor to ensure the reliable sealing of the import and export pipeline connection.
3.During installation, the rubber plug of the inlet and outlet must be removed, and any impurities and welding slag must not enter the pump chamber.
4.It is strictly prohibited to operate or use water media without media. Or use other media to clean the pump.
5.Long unused and before the first start, the pump cavity must be filled with the use of media.
6.The pipe diameter configuration must be consistent with the pump diameter. The inlet and outlet pipe valves must be opened when starting.
7.It is strictly prohibited to use pressure exceeding the rated working pressure of the pump.
8.Do not adjust the safety valve adjusting bolts, which have been adjusted before delivery. The safety valve cannot be used as an relief valve
9.It is strictly prohibited to disassemble the pump parts without the written permission of the manufacturer
10.Screw pump is a positive displacement quantitative pump, its working pressure depends on the system load.
