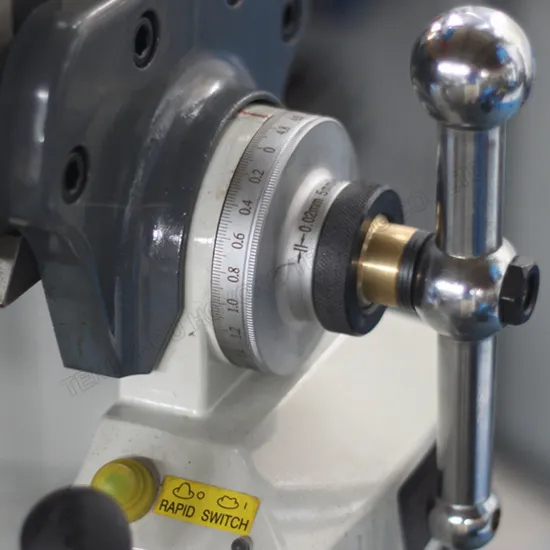

Hot Selling Factory Price Vertical Benchtop Turret Milling Machine Xh6325 Xh6325D
| US$3,000.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XH6325 XH6325D
Type
Knee Type Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
305X1370mm
Long Travel(mm)
800mm
Cross Travel(mm)
420mm
Vertical Travel(mm)
420mm
Motor
3kw
Transport Package
Plywood Case
Specification
1600kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
DESCRIPTION OF GOODS
This machine tool has vertical , horizontal mill two kinds of function, the spindle taper hole may straight pass accessories install all kinds of column milling cutter, wafer milling cutter, molding milling cutter, end milling cutter and so on cutter, suitable for processing all kinds of the plane, the ;the incline, the groove, the hole ,the gear and so on of the medium and small size parts, and it is the perfect processing equipment for machine building, mold, apparatus, car, motor and so on industry
The slide way on the saddle is lined with TF wearable material both X axis and Y axis
| MODEL | XH6325 | XH6325D |
| Features | Rectangular guide way on Y/Z-axis | |
| Table size | 305×1370 | 305x1370 |
| Table loading | 350Kg | 350kg |
| Long travel | 800mm | 800mm |
| Cross travel | 420mm | 420mm |
| Vertical travel | 420mm | 420mm |
| T-slot No. and size | 3×16 | 3×16 |
| Ram travel | 470mm | 470mm |
| Distance from spindle nose to table surface | 0-405mm | 0-405mm |
| Spindle hole taper | ISO40(V) 7:24(H) | ISO40(V) 7:24(H) |
| Sleeve Diameter | 85mm | 85mm |
| Spindle travel | 127mm | 130mm |
| Spindle speed | (standard): (shift grade) 50HZ: 66-4540(V) 60HZ: 80-5440(V) 50HZ: 45-980(H) 60HZ: 55-1180(H) | |
| Auto. quill feed | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution |
| Spindle motor(Vertical) | 3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan | 3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan |
| Horizontal motor | 3KW | 3KW |
| Head swivel | 90° | 90° |
| Head tilting | 45° | 45° |
| Dimension of package | 1516×1550×2250 | 1516×1550×2500 |
| G.W/set | 1450Kg | 1500Kg |
