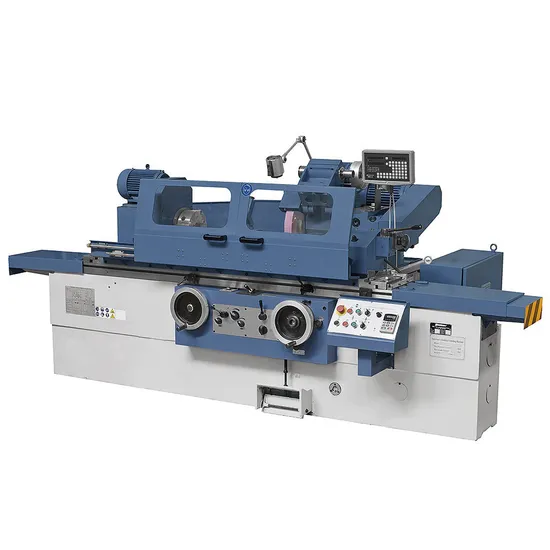

China Best Quality High Precision Universal External Cylindrical Grinder Machine MW7410 M1332 M1332A
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1332 M7140
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Center Height
180mm
Dia Ground(O.D)
8-320
Max Length Ground(O.D)
1000
Center Taper
Mt4
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
Universal Cylindrical Grinding Machine FEATURES:
1) Universal
2) Precise
3) With high rigidity
4) Reliable performanceSPECIFICATIONS:
| Model | M7140*1000 | M7140*1600 | M7140*2000 | ||||
| Working tanle | Table size(L×W) | mm | 1000×400 | 1600×400 | 2000×400 | ||
| Max movement of working table(L× W) | mm | 1100 | 1700 | 2100 | |||
| T-Slot(number×width) | 3×18 | 3×18 | 3×18 | ||||
| Speed of working table | m/min | 3--25 | 3--25 | 3--25 | |||
| Grinding head | Max distance from spindle center to table surface | mm | 575 | 575 | 575 | ||
| Max travel of grinding head | Cross(Manual and hydraulic) | mm | 440 | 440 | 440 | ||
| Vertical(Manual) | mm | 400 | 400 | 400 | |||
| Spindle speed | rpm | 1440 | 1440 | 1440 | |||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ350×40×φ127 | φ350×40×φ127 | φ350×40×φ127 | |||
| Scale on the vertical handwheel | mm | 0.01 | 0.01 | 0.01 | |||
| Grinding head feed per revolution of handwheel | mm | 1.00 | 1.00 | 1.00 | |||
| Total power | kw | 11 | 12 | 12 | |||
| Spindle motor | Power | kw | 7.5 | 7.5 | 7.5 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Rapid up and down motor | Power | kw | 0.37 | 0.37 | 0.55 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Oil pump motor | Power | kw | 3 | 4 | 4 | ||
| Speed | r/min | 960 | 960 | 960 | |||
| Coolant pump motor | Power | kw | 0.125 | 0.125 | 0.125 | ||
| Speed | r/min | 2800 | 2800 | 2800 | |||
| Oil pump | Flow | L/min | 100 | 100 | 125/50 | ||
| Working pressure | MPa | 1.5 | 1.5 | 1.5 | |||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 | ||
| Surface roughness | µm | Ra0.63 | Ra0.63 | Ra0.63 | |||
| Weight | N/G | kg | 3800/4200 | 5300/6000 | 6300/7000 | ||
| Overall dimension(L×W×H) | mm | 2700×1750×2100 | 4400×1750×2100 | 5400×1750×2100 | |||
| Model | Unit | M1332B |
| Grinding length | mm | 1000 |
| Grinding diameter | mm | 8-320 |
| Center height | mm | 180 |
| Max. Workpiece weight | kg | 150 |
| Worktable speed | M/min | 0.1-4 |
| Wheel peripheral velocity | M/s | 38 |
| Max. Travel of worktable | mm | 1100 |
| swivel range of worktable | ° | -3-+7° |
| External wheel size | mm | 600x75x305 |
| Spindle speed of workhead | R/min | 26,52,90,130,180,260 |
| Grinding spindle speed | R/min | 1100 |
| Headstock top | morse | NO.5 |
| Tailstock top | morse | NO.4 |
| Rapid advance and withdrawalamount | mm | 50 |
| Wheelhead displacement per rev of handwheel coarse/fine | mm | 2/0.5 |
| Wheel head displacement per div of handwheel coarse/fine | mm | 0.01/0.0025 |
| Total motor power | kw | 14.27 |
| Overall size | mm | 3605x1810x1515 |
| Machine weight | kg | 4000 |
| MODEL | UNIT | SPECIFICATIONS | |||
| M1432B×1000 | M1432B×1500 | M1432B×2000 | M1432B×3000 | ||
| General capacity | |||||
| Distance between centers | mm | 1000 | 1500 | 2000 | 3000 |
| Center height | mm | 180 | 180 | 180 | 180 |
| Dia.Ground(O.D) | mm | 8~320 | 8~320 | 8~320 | 8~320 |
| Dia.Ground(I.D) | mm | 30~100 | 30~100 | 30~100 | 30~100 |
| Max.length ground(O.D) | mm | 1000 | 1500 | 2000 | 3000 |
| Max.length ground(I.D) | mm | 125 | 125 | 125 | 125 |
| Max weight of work piece | kg | 150 | 150 | 150 | 150 |
| Workhead | |||||
| Swiveling angle | +90 | +90 | +90 | +90 | |
| Center taper | MT | 4 | 4 | 4 | 4 |
| Spindle speed | r/min | 50HZ:25-220 60HZ:30-364 | 50HZ:25-220 60HZ:30-364 | 50HZ:25-220 60HZ:30-364 | 50HZ:25-220 60HZ:30-364 |
| Wheelhead | |||||
| Wheel spindle speed | r/min | 1670 | 1670 | 1670 | 1670 |
| Wheelhead rapid travel | mm | 50 | 50 | 50 | 50 |
| Max travel | mm | 246 | 246 | 205 | 205 |
| Swiveling angle | ° | ±30° | ±30° | +10° | +10° |
| Hand feed per.rev | mm | rough:2.0 fine:0.5 | rough:2.0 fine:0.5 | rough:2.0 fine:0.5 | rough:2.0 fine:0.5 |
| Hand feed per.gra | mm | rough:0.01 fine:0.0025 | rough:0.01 fine:0.0025 | rough:0.01 fine:0.0025 | rough:0.01 fine:0.0025 |
| Max dimension of wheel(OD×W×ID) | mm | 400×50×203 | 400×50×203 | 400×50×203 | 400×50×203 |
| Internal grinding | |||||
| Spindle speed | r/min | 10000/15000 | 10000/15000 | 10000/15000 | 10000/15000 |
| Dimension of wheel | mm | max:50×25×13 min:17×20×6 | max:50×25×13 min:17×20×6 | max:30×25×10 min:17×20×6 | max:30×25×10 min:17×20×6 |
| Table | |||||
| Hand feed per rev. | mm | 6 | 6 | 6 | 6 |
| Max swivelling angle of table | ° | clockwise:3° widdershins:7° | clockwise:3° widdershins:6° | clockwise:2° widdershins:5° | clockwise:2° widdershins:3° |
| Longitudinal traverse speed of table | m/min | 0.1~4 | 0.1~4 | 0.1~4 | 0.1~4 |
| Tailstock | |||||
| Center taper | MT | 4 | 4 | 4 | 4 |
| Quill travel | mm | 30 | 30 | 30 | 30 |
| Motor | |||||
| Wheelhead motor power | Kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Internal grinding | Kw | 1.1 | 1.1 | 1.1 | 1.1 |
| Power of workhead motor | Kw | 1.5 | 1.5 | 1.5 | 1.5 |
| Machine | |||||
| Gross weigh | Kg | 5300 | 6100 | 7900 | 9900 |
| Packing dimension | mm | 3220×2000×2050 | 4220×2000×2050 | 5400×2000×2050 | 7390×2280×2050 |
