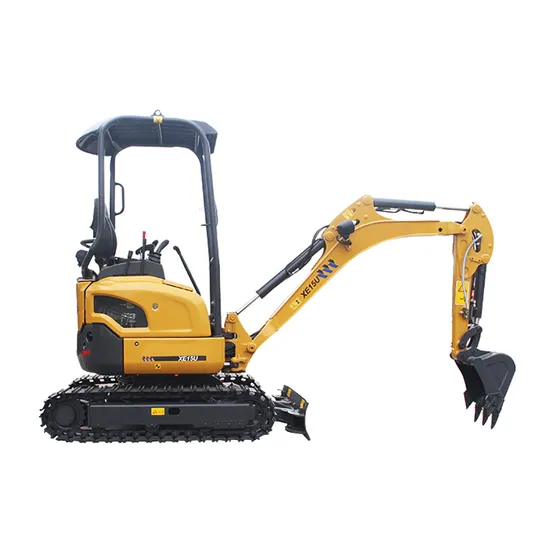

1.5 Ton Mini Excavator Xe15u Construction Equipment

Product Description

XE15U 1.5 ton 1.5ton small mini crawler excavator
XE15U hydraulic excavator uses a mechanical injection oil engine with national II emission standards and has
characteristics of strong power, energy conservation and environmental protection, high reliability and excellent performance.

With latest technological achievements used, key hydraulic parts have low energy consumption, fast response speeds,
accurate control, and small impact forces, and can maintain strong mining ability and high operation efficiency.

Perfect matching of the engine and hydraulic system power ensures that the engine can work in an area with optimal fuel
consumption, improves a fuel utilization ratio, and saves the cost. A new-type hydraulic system provides enough flow for
all working devices and has high efficiency.

Description		Unit	XE15U
Operating weight		Kg	1795
Bucket capacity		m³	0.04
Engine	Model	/	D782-E3B-CBH-1
	No. of cylinders	/	3
	Output power	kw/rpm	9.8/2300
	torque/speed	N.m	44.5/1800
	Displacement	L	0.778
Hydraulic system	Travel speed(H/L)	km/h	4.3/2.2
	Gradeability	°	30°
	Pressure of prime valve	MPa	22
	Pressure of travel system	MPa	22
	Pressure of swing system	MPa	11
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	18
	Hydraulic tank capacity	L	17
	Engine oil capacity	L	3.8
Appearance size	Overall length	mm	3560
	Overall width	mm	1240
	Overall height	mm	2348
	Width of platform	mm	990
	Overall width of chassis	mm	990/1240
	Width of crawler	mm	230
	Track length on ground	mm	1270
	Crawler gauge	mm	760/1010
	Clearance under counterweight	mm	450
	Min. ground clearance	mm	145
Working scope	Min. tail swing radius	mm	620
	Max. digging height	mm	3475
	Max. dumping height	mm	2415
	Max. digging depth	mm	2290
	Max. vertical wall digging depth	mm	1750
	Max. digging reach	mm	3900
	Min. swing radius	mm	1530
Standard	Length of boom	mm	1690
	Length of arm	mm	1100
	Bucket capacity	m³	0.04

* More efficient return Tailless design for a turning radius ensures that the XE15U hydraulic excavator will not touch obstacles at the tail in narrow working conditions.

* More reliable and durable A four-point supporting shed that meets safety standards is used for the cab, and widens the driver's horizon while ensures the shed's strength. Seats are configured with standard safety belts, improving driver's working security.

* More comfortable and safe Brand-new designed hand holder, cup holder, etc. improve operation comfort and convenience maximally.
