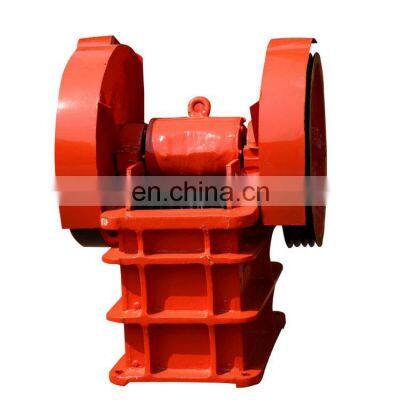

PE PEX series stone rock mini portable diesel engine small jaw crusher machine plant

Product Description

Product Description
Product DescriptionPE PEX seriese stone rock mini portable diesel engine small jaw crusher machine plant Jaw crusher is one of the most popular equipment in mine industry production. It is mainly used in all kinds of materials with middle crushing or coarse crushing, and the crush resistance below 320MPa. Jaw crusher has the features of high crushing rate, simple structure, stable operation, easy maintenance and low operation cost. Jaw crusher is derived by motor through the motors wheels; the eccentric shaft is derived by the fangled belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, The movable jaw plate and cheek plate can be crushed and discharged through the discharging opening. Jaw crusher working principle:Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room. With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized. Primary jaw crusher technical parameters: Modelmax feed size(mm)Discharge size(mm)Capacity(t/h)Power(kw)Weight(T)PE-150×25012510-401-35.50.8PE-200×30018020-702-8111.4PE-250×40021020-805-20153PE-400×60035040-10015-60306.5PE-500×75042550-10040-1105511.3PE-600×90048065-16090-1507517.625PE-750×106063080-160100-25090-11027.5PE-900×120075095-165120-300110-16052PE-1000×1200850110-260180-350110-16057PE-1200x15001020150-300300-500180-220100 Secondary jaw crusher technical parameters: Modelmax feed size(mm)Discharge size(mm)Capacity(t/h)Power(kw)Weight(T)PEX-150×7501208-2510-40153.5PEX-250×75021012-2515-50305.5PEX-250×100021012-5030-95376.37PE-350×75030015-5020-50306.5PE-300×130025020-9045-1307511PE-600×90048065-16090-1507517.625 Jaw crusher structure:Portable diesel engine jaw crusher: Working site Our Services 1. Pre-sale service: 1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory). 2) Welcome to visit us at any time, we will pick you up. 2. Sale service: 1) Keep clients updated when our company gets advance payment.2) Confirm production details with clients.3) Take photos and send all pictures to customers during production.4) Inspection and testing the product before delivery; 5) Clients are welcome to inspect the equipment when the equipment are ready to delivery. 6) logistics service if needed. 3. After Sale service: 1) Provide foundation drawing to the clients for installation.2) Besides, our engineers are available to help with installation and workers training.3) Repairing and maintenance if any problem during the warranty.4) Spare parts and wearing parts will be offered with production cost in 10 years. Company InformationZhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery. After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and SINOLION products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market. SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install coal production lines. We will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers! Welcome to SINOLION for visiting and seeking common development. FAQQuestion 1: What’s the delivery time after I pay the deposit ? Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment. Question 2: Is mineral samples analysis available?Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection. Question 3: Do you have client in my country?Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc Question 4: How long of your machine quality guarantee terms ?Answer: Quality guarantee time is one year(wearing parts excluded).
