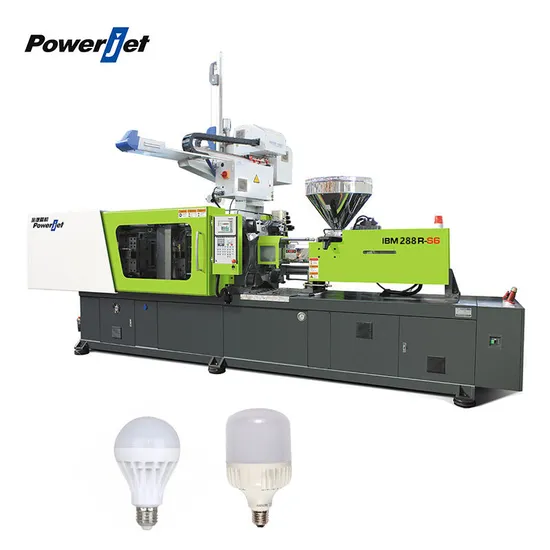

Advanced Powerjet Rotary Blow Molding Machine for LED Components
Basic Info.
Model NO.
IBM288R-S6
Plastic Type
Thermoplastic
Clamping Way
Hydraulic
Certification
CE, ISO9001:2008
Screw Speed (Rpm)
210 - 211 Rpm
Clamping Force (Kn)
2880
Screw L/D Ratio
21
Injection Weight (G)
530 G
Plasticizing Capacity(G/S)
45
Screw Diameter (mm)
52 mm
Injection Rate (G/S)
220 G/S
Open Stroke(mm)
550 mm
Power (Kw)
30 Kw
Mold Height(mm)
620 - 750 mm
Ejector Number
4
Trademark
Powerjet
Origin
Guangdong, China
Product Description
Company deatilsRotary Accuracy
The rotary part is controlled by servo motor, which ensures the rotary accuracy.
| DESCRIPTION | UNIT | IBM288R-S6 | |
| LAMPING UNIT | Clamping force | KN | 2880 |
| Opening stroke | mm | 550 | |
| Max.datlight | mm | 1300 | |
| Platen size | mm | 850*850 | |
| Space between bars | mm | 610*610 | |
| Max.mold height | mm | 750 | |
| Min.mold height | mm | 620 | |
| Max. Rotary Center Distance | mm | 650 | |
| Min. Rotary Center Distance | KN | 310 | |
| INJECTION UNIT | Screw diameter | mm | 52 |
| Screw L/D Ratio | L/D | 21 | |
| Injection Pressure | MPa | 226 | |
| Shot volume | cm3 | 594 | |
| Shot weight (ps) | g | 530 | |
| Injection rate | g/s | 220 | |
| Screw stroke | mm | 280 | |
| Screw speed | rpm | 210 | |
| POWER UNIT | Hydraulic system Pressure | MPa | 17.5 |
| Pump motor power | KW | 30 | |
| Heater power | KW | 13.8 | |
| GENERAL | Oil tank capacity | L | 425 |
| Machine weight | T | 9.3 | |
| Machine dimensions (L*W*H) | m | 6.4*1.7*2.1 | |
