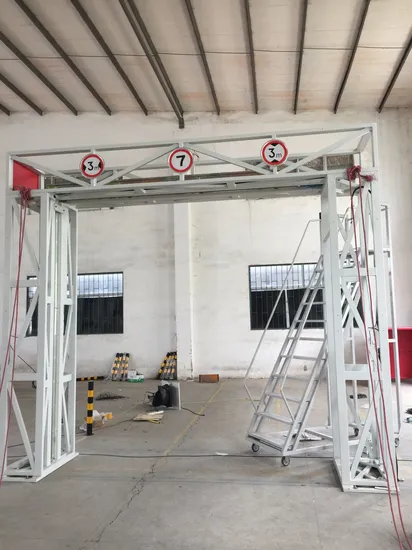

X-ray Scanner X-ray Machine Gantry Type Drive-Through Vehicle Imaging System

Product Description

Safeway System - AT 2900
Designed for passenger cars, small vehicles, and cargo vans x ray non intrusive inspection system (NII scanning system)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Product highlights
Drive-thru technology
Occupied vehicle scanning capability: passengers can stay in their cars during scanning process, driving them under their own power through the inspection portal.
Small footprint
The deployment of the AT2900 requires a relatively small ground surface without special requirements for additional infrastructure.
High penetration
The AT2900 produces high-quality X-ray images of inspected objects through 20 mm of steel at car speeds of 10 km/h.
High quality X-ray images
To ensure proper detectability of the concealed objects, the AT2900 produces images with the 2% of the contrast sensitivity and 0.8mm copper wire detection capability.
Dual energy imaging
The AT2900 has an automatic color coding for materials separation (3 colors) feature allowing distinguishing between organic, non-organic and metal materials. This feature helps the operator to detect dangerous object from the various materials.
Radiation safety
The AT2900 ensures the low dose for driver and passenger operation (complies with ANSI 43.17 standard) as well as protection of the operator. The inspection portal is equipped with the video surveillance system to avoid the inspection of the passer-by's.
Automatic recognition of the licence plate number (option)
With the additional camera (option) the AT2900 is able to identify and store the licence plate number of each scanned vehicle.
Under video vehicle surveillance (option)
Upon request, the AT2900 can be provided with the video surveillance system for under-vehicle inspection

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Physical Specifications
Equipment size	4.8(L) * 4.9(W) * 3.75(H) M
Installation area ideally	7(L)* 5(W) * 4.5(H)M
General Specifications
Tunnel size	3(L) * 3(H)m
Scanning Speed	5-10km/h
Typical throughput	150pcs vehicles/hour
Max Vehicle length	20m and extendable
Penetration	Typical 45mm steel, application 20mm steel
Wire Resolution	Dia 1.0mm copper wire
Mix Dose to passengers	<0.2μsv/scan
Dose rate outside	Public area<0.5μsv compliant with IAEA standard
Power Consumption	Max. 2KVA
Operator 's workstation	PC-based workstation with the 24" LCD diaplay
X-ray Generator(single)
Dual energy accelerator	200kv
Beam shape	Vertical fan-shaped beam
Operating Environment
Operation temperature/Humidity	-15ºC-55ºC/5ºC-95ºC(non-condensing)
Storage temperature/Humidity	-40ºC-70ºC/5ºC-95ºC(non-condensing)
Operation Power	220VAC(±10% ) 50±3Hz (Optional:100VAC,110VAC,120VAC,200VAC)
Software
1 password-protected login of the operator
2 Automatic real-time diaplay of the inspected vehicle
3 Brightness and contrast adjustment of acquired image
4 High-density and low-density objects display feature
5 Zoom in and pan functions(up to 8x)
6 Block/whit
