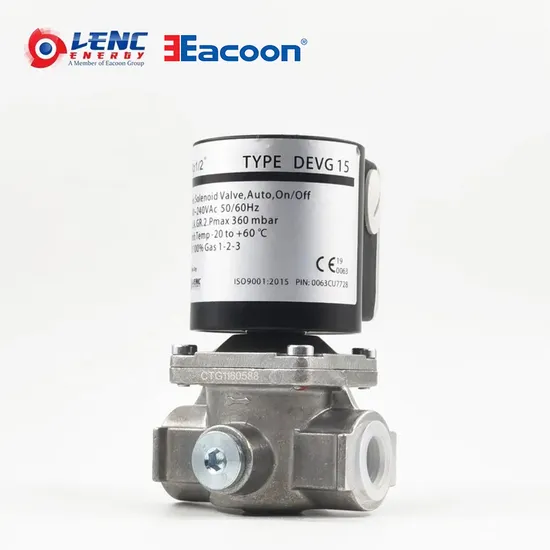

Devg Thread Series- Fast Opening and Fast Closing Gas Solenoid Valve

Product Description

Type	Length(mm)	Width(mm)	Height(mm)	Coil rotation(mm)	Protection level	230V AC Power(w)
DEVG15	72	71	115	55	IP54	15
DEVG20	92	76	156	59	IP54	22
DEVG25	92/100	76/80	156/158	59/59	IP54	22
DEVG32	149	115	216	71	IP54	42
DEVG40	149	115	216	71	IP54	42
DEVG50	170	142	230	76	IP54	50

Product details
This gas solenoid valve can be widely used in the field ofgassafety transmission control for opening and closingor emergencycut-off.
Operation and installation
Normally closed,it will open quickly when power is onWhen operating.the blue light will go on.t will be closeoimmediately when the power is off and the light will gooffThere are bypass holes with an aperture of 3G1/ 4" pro-vided onboth sides or at the bottom of the valve body.
Technical parameter
Opening time:< 1 second
Closing time:< 1 second
Maximum operating frequency:20 times/minMaximum
working pressure:DN10 -25 360mbar;DN32-100:200mbar
With G1/4 aperture bypass holes Built-in filtering
Protection level:IP54
Sealing material: NBRBody
material: aluminum alloyAlSI 302 steel
springWorking temperature:-15C- 60C
Coil temperature: 65C
Standard and certification
Achieving"A"standardMeet European gas standardsCEcertification.
Electrical specification
Rated voltage: 50/60Hz 230Vac,110Vac,24VDCAndother specific)Coil level F,can be 360rotation, can work100%continuously for a long time.
