ASTM A653 Dx51d Dx52D Sgh540 SGCC340 Sgc400 Z275 Z80 Hot Dipped Coil Dx53D As120 Galvalume Aluminized Silicon Coated Gi Dx54D Galvanized Steel Sheet

Product Description

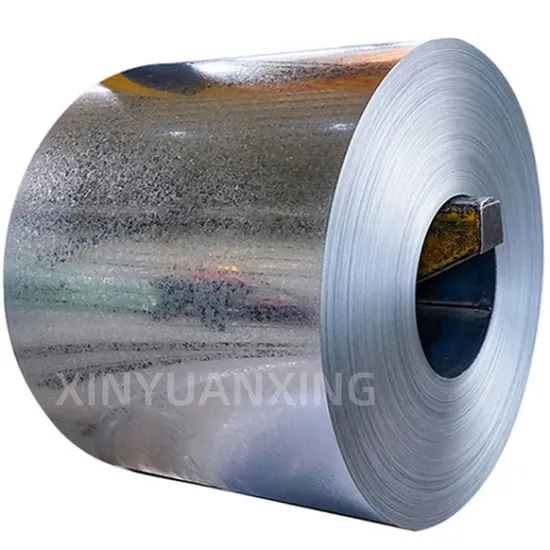

SGCC/Dx51d+Z Cold Rolled Gi Coil G90 Z275 Hot Dipped Galvanized Steel Coil Roofing Coil Product Description
Galvanized Steel Coil is a high-quality product made of steel, zinc-coated and hot dipped. It has excellent hardness, durability and processing service with HRB60-95. Galvanized steel sheet is highly adaptable and can be used for welding, punching, cutting, bending and decoiling. It also has great elongation rate from 16-30% and yield strength from 180-400MPa. The main material is DX51D and DX52D, making the Galvanized Steel Sheet a perfect choice for projects that require high-quality and long-lasting steel.

Product Name	Galvanized Steel Coil
Grade	DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,DX56D+Z
	DX51D+AS80/120,DX52D+AS80/120,DX53D+AS80/12,DX54D+AS80/12,DX56D+AS80/12
	S250GD+Z,S280GD+Z,S350GD+Z,S550GD+Z
	SGCC,SGCD,SGCE,SPHC, SECC
Standard	ASTM,AISI ,JIS,DIN,GB,EN,etc.
Zinc coated	30-275g/m2
Spangle	Large Spangles,Regular Spangles,Small Spangles,Zero Spangles
Surface treatment	Chromated,oiled/non-oiled and anti-finger printing
Thickness	0.3-3.0 mm or as required
Width	600-1250 mm or as required
MOQ	5TONS
Substrate	Cold rolled ,Hot rolled
Tolerance	Thickness:±0.01mm
	Width:±2mm
Packaging	Export standard package: bundled wooden box, suit for all kinds of transport, or be required.
Application	construction,decoration,hardware,electric appliances,machinery and other industrial and civil purposes,such as electronic capacitor,composite cooker,rice cooker,refrigerator, computer casting,telecommunication,equipment,lamp shade,air conditioner,cosmetics cover and so on.
Container size	20ft GP:5898MM(Length)*2352mm(Width)*2393mm(High) 40ft GP:12032mm(Length)*2352mm(Width)*2393mm(High) 40ft HC:12032mm(Length)*2352mm(Width)*2393mm(High)

Detailed Photos
Chemical Composition

STEEL GRADE	CHEMICAL COMPOSITION %					MECHANIC PROPERTY			C.B OF COATING
	C	Si	Mn	S	p	T.S	Y.S	E.L
	x103	x103	x102	x103	x103	Mpa	Mpa	%	d=180
JIS G3302 SGCC	12	30	41	31	21	480	300	13	OK
JIS G3302 SGCH	12	10	21	18	6	680	650	20	OK
ASTM 653 CS.B	29	30	60	35	30	386	250-380	20	OK
DX51D+Z	20	21	18	1.8	11	355	245	38	OK
G550	12	6	73	5	17	715	654	8	OK

Surface Treatment
Certifications
Application
Packaging & Shipping
FAQ
Q: What are the details of your after sales service?
A:1) We provide the necessary technical support to all of our customers, such as material performance and heat treatment data advice.
2) We provide the appropriate steel material technical parameters for customers in Germany, The USA, Japan, Britain, and other countries.
Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

Q:It's my first time to import steel products, can you help me with it? A:Sure,we have agent to arrange the shipment, we will do it together with you.
