Swe 215f-5A Medium Excavator Construction Mining Demolition Load-Sensitive System 21 Tons Arm Digging Force 110kN

Product Description

SWE 215F-5A Medium Excavator construction mining demolition load-sensitive system 21 tons arm digging force 110kN

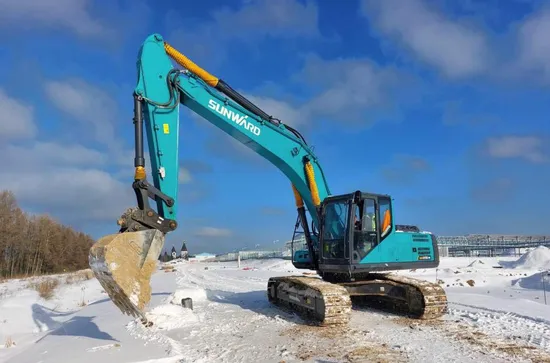

SUNWARD SWE 215F
Looking for a sturdy and powerful medium excavator around 21 tons? The Sunward SWE 215F medium excavator is the perfect fit for large construction, quarrying, or demolition work. It is designed to be versatile and durable, with a long lifetime. The SWE 215F's masterful design, EU Stage V B6.7 engine, and enhanced hydraulics system deliver power, smooth operation, and high productivity. This top of the line medium excavator offers excellent performance, comfortable and safe operation, and convenient maintenance.
In the Sunward tradition to always offer the best value for money, the SWE 215F is no exception since it offers many features and up to 5 years of warranty as standard, at the right price.
Discover all the other advantages of the Sunward SWE 215F. Product Parameters
Technical Specifications

ENGINE
Brand		CUMMIN
Model		QSB6.7
Type		Direct injection, 4-stroke, water-cooled, turbocharged, intercooled
Displacement		6.7L
Power		129kW/2200rpm
DIMENSIONS
Counterweight Clearance				1060mm
Tail Swing Radius				2750mm
Shipping Length				9570mm
Shipping Width				2800mm
Shipping Height				2970mm
WORKING RANGES
Max. Cutting Height					9750mm
Max. Loading Height					6980mm
Max. Digging Depth					6750mm
Max. Vertical Wall Digging Depth					5900mm
Max. Digging Reach					9940mm
Max. Digging Reach (Ground)					9775mm
Bucket Digging Force					155kN
Stick Digging Force					110kN
Ground Pressure					46kPa
Swing Speed					11.8rpm
ELECTRIC SYSTEM
Nominal voltage			24V
Batteries			120Ah
Alternator			24V-120A
Starter			24V-7.8kW
DRIVE
Max. Travel Speed (2nd/1st)						5.2/3.3km/h
Gradeability						35°
Max. Traction						193kN
CAPACITY
Fuel Tank 385L
Hydraulic Tank 290L
UNDERCARRIAGE
Length to center of rollers					3465mm
Track length					4260mm
Track gauge					2200mm
Undercarriage Width					2800mm
Track shoe width					600mm
HYDRAULIC SYSTEM
Main Pumps
Type	2 piston pumps
Displacement	2x240 L/min
Working Pressure	31.4/34.3MPa

Product Description

FEATURES & BENEFITS
POWERFUL & RELIABLE ENGINE
For the SWE 215F, we selected the award-winning EU Stage V Cummin B6.7 engine in its latest version. This engine sets the industry standard for reliability and durability and enjoys wide popularity in the market, so it has an extensive service network. Its increased fuel economy and longer maintenance intervals contribute to lower cost of operation and lower Total Cost of Ownership.
As hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. For the SWE 215F, we selected Japanese premium brands KPM for the hydraulic pump and swing motor and KYB for the Main Control Valve (MCV). Both highly reliable brands are known for their high efficiency and long-life components, designed specifically to meet the demands of hydraulic excavators.
BUILT TO LAST
The SWE 215F has been designed with durability in mind. The Cummin engine has built a reputation for high durability, even in extreme working conditions. Also, special attention has been put into the key parts of the SWE 215F, such as the boom and the arm, which are designed with an increased sheet material thickness. All supporting elements are made of high strength, high ductility, and structural steel die forged pieces. This has the great advantage of providing elements with both high wear resistance and structural strength. This process delivers a massive increase in reliability operating under heavy duty work. For example, the swingarm and bucket rod are designed with the reliability standard of 20 000 hours.
Also, the SWE 215F's heavy-duty implements are delicately annealed, which completely eliminates the residue stress in weld seams and increases the machine's reliability significantly. After welding, the natural cooling process (with the risk of uneven cooling) is prevented by heating the metal in an isolated chamber to 600 - 800°C and then cooled down slowly (5 - 8 hours), avoiding residual stress and defects. This kind of cooling process is usually not adopted by manufacturers who want to save time and money.
Last but not least, the X chassis has been reinforced, bringing excellent resistance to distortion.
LOW CONSUMPTION
Thanks to the inline turbocharged 4-cylinder B6.7 engine, the SWE 215F uses less fuel, with improved total fluid efficiency (includes both fuel and Diesel Exhaust Fluid), with no compromise on performance (this engine has an even better performance compared to its previous version, delivering 5 percent more power and almost 31 percent more torque across the entire RPM range).
Sunward's SWE 215F medium excavator also has the highest hydraulic efficiency, which results in low fuel consumption. With the new premium quality main pump from KPM, and the innovative thinking from Sunward, we increased the machine's displacement by 7%, power by 4%, and volume efficiency by 6% - making the entire excavator more energy efficient).
Finally, thanks to the 3 attachment work modes, operators can enjoy versatility, but also fuel consumption optimization. BEST VALUE FOR MONEY Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE 215F's expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward's own genuine spare parts are economical as well - and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.
Detailed Photos

Our Advantages
We could supply whole machines at your one stop, or selecting best products combination for your projects, at prices a little lower prices while keeping same after sales services all over the world.
Besiders, frontless Excavators with rock ribber, Surface DTH drill rigs, Top hammer drill rigs , underground jumbos, development drill rigs, production drill rigs, bolters, scalers, LHD , dump trucks, tunneling jumbos and bulldozers also could be supplied with matched excavators.
Any more question, please feel free to contact us.
