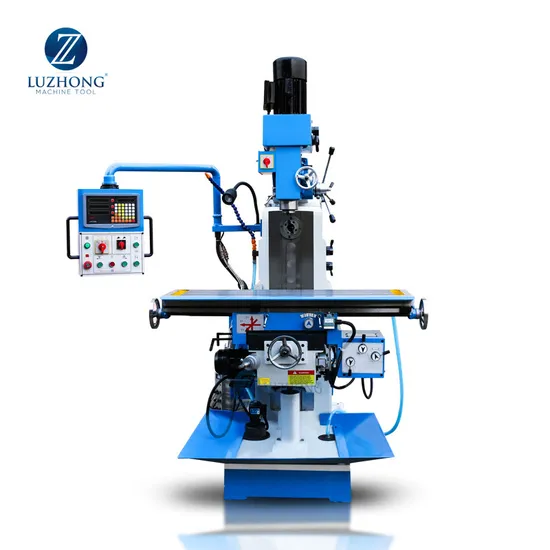

Auto Feed Vertical Metal Knee Drilling and Milling Machine ZX6350A
Basic Info.
Model NO.
ZX6350A
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Auto Feed Vertical Metal Knee Drilling and Milling
Table Size
1250X320mm
Longitudinal Travel
630mm
Cross Travel
300mm
Vertical Travel
300mm
Spindle Taper
Mt4
Spindle Motor
1.5/0.85kw
Vertical Spindle Travel
120mm
Transport Package
Plywood Case
Specification
1680x1550x2100mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459590000
Production Capacity
50 Sets Per Month
Product Description
Auto Feed Vertical Metal Knee Drilling and Milling Machine ZX6350AProduct Description
The main performance characteristics:
1.Gear transmission for vertical/horizontal milling head
2.X /Y/Z axis auto feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching Product Parameters
Product main technical parameters:
| Specifications | Units | ZX6350A |
| Table size | mm | 1250X320 |
| T Slot number/width/pitch | mm | 3/14/70 |
| Longitudinal travel | mm | 600 |
| Cross travel | mm | 300 |
| Vertical travel | mm | 300 |
| Beam travel | mm | 300 |
| Vertical spindle axis to column surface | mm | 200-500 |
| Vertical spindle nose to table surface | mm | 90-390 |
| Horizontal spindle axis to table surface | mm | 0-300 |
| Horizontal spindle axis to beam surface | mm | 175 |
| Vertical spindle speeds | R/min | 115-1750 8 steps |
| Horizontal milling spindle speeds | R/min | 40-1300 12 steps |
| Vertical spindle taper | MT4 | |
| Horizontal spindle taper | MT4 | |
| Vertical spindle travel | mm | 120 |
| Main motor power | kw | 0.85/1.5(V),2.2(H) |
| Vertical milling bead swivel angle | ° | ±45 |
| Table X/Y axis auto feed speed | Mm/min | 22-555(8 steps)(rapid:840) |
| Table Z axis auto feed speed | Mm/min | 560 |
| X/Y axis feed motor | w | 750 |
| Z axis feed motor | w | 750 |
| Overall dimensions | mm | 1680x1550x2100 |
| Net weight | Kg | 1450 |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
