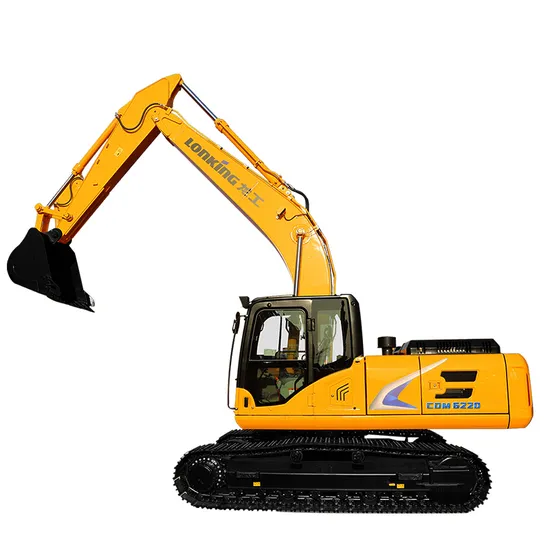

LG6220 New Technical Medium Size Crawler Excavator Engine
| US$34,300.00-68,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CDM6220
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Self Weight
21800kg
Max Digging Radius
9879mm
Max Digging Depth
6570mm
Max Digging Height
9292mm
Max Dump Height
6651mm
Max Digging Radius on The Group
9715mm
Shipping Length
9459mm
Shipping Height
3200mm
Tumbers Distance
3462mm
Radius Swing Center to Rear End
2860mm
Counterweight Ground Clearance
1061mm
Track Gauge
2200mm
Overall Width
2809mm
Width of Upper Structure
2740mm
Track Shoe Width(Standard)
600mm
Origin
China
HS Code
8429521200
Production Capacity
20000
Product Description
Product Description| Lonking | ||
| Shanghai | ||
| Self Weight | kg | 21800kg |
| Bucket Capacity | m3 | 1 |
| Capacity Range | m3 | 1-1.5 |
| Ground Pressure | KN | 51 |
| Travel speed | KM/H | 5.5/3.33 |
| Rotating Speed | rmp | 11.6 |
| Gradeability | % | 35 |
| Model | Cummins B5.9-C | |
| Power | KW | 112KW/1950rpm |
| Fuel Capacity | L | 380 |
| Displacement | L | 5.9 |
| Working Pressure | Mpa | 31.5/34.3 |
| Flow capacity | L/min | 208*2 |
| Hydraulic Tank Capacity | L | 280 |
| The Max bucket Digging Force KN | KN | 158 |
| The max arm Digging Force | KN | 105 |
| Boom length | mm | 5675 |
| Arm length | mm | 2920 |
| Bucket Radius | mm | 0 |
Detailed Photos
