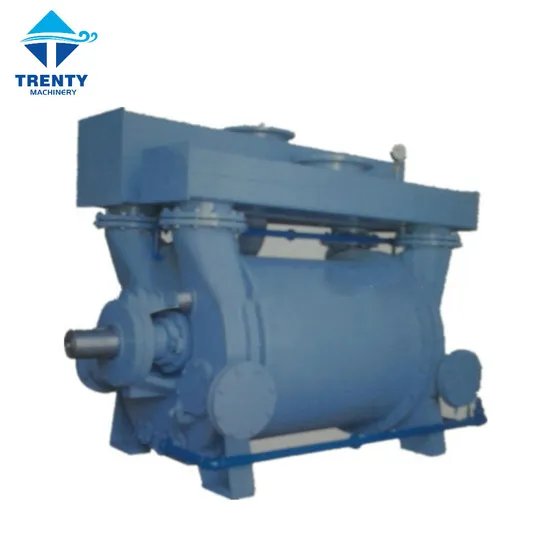

CE Certificate Cbf710-2 Energy Saving High Efficiency Liquid/Water Ring Vacuum Pump, Update of 2be1 Pump

Product Description

Product Description CBF liquid ring/ water ring vacuum pump is a new-generation replacement of 2BE1 pump, handling air or gas without solids and working-liquid-insoluble or slightly soluble.
Advantages
More energy-saving than 2BE1 pumps when operating at 200-1013 mbar. High reliability because of much lower impeller linear speed and lower noise. Unique structure (1) A flexible valve plate make it possible that discharge angle adjusts automatically with high efficiency at all time. (2) An automatic drain valve protects the pump from overload by controlling water level. (3) Cooled working liquid can be primed into the pump by itself. (4) Partition wall type pump casing. (5) Split type packing gland can be easily removed for service.
Working principle
Model Notation
Performance curves and installation drawings
Company Information
FAQ 1 -- What about the material of the pump?
-- Besides the standard material, the wetted ends can be in different stainless steel to meet various
requirements.
SEBF macromolecular ceramic coating can also be available for rigorous processing applications
where corrosion resistance is strictly required. This technology will also significantly reduce the
deposit formation due to its smooth surfaces after SEBF being coated onto the wetted parts.
2 -- Could CBF pumps replace 2BE1 directly?
-- If you are seeking the replacement of your existing 2BE1 pumps which is operating at 200 to 1013
mbar, we can provide a suitable CBF ones with no need of chaning the pipings.
The energy will be saved and the reconstruction cost is reduced, just like kill two birds with one
stone.
3 -- What are the pumps mainly applied in?
-- Negative pressure dedusting in power industry;
Vacuum distillation, crystallizing in petrochemical industry;
Vacuum systems in tabacco industry;
Vacuum systems and de-aeration in paper making industry;
Varying adsorption in gas making;
Vacuum floatation and filtration in fuels sector and mine;
Methane removing from coal bed in coal mine.
