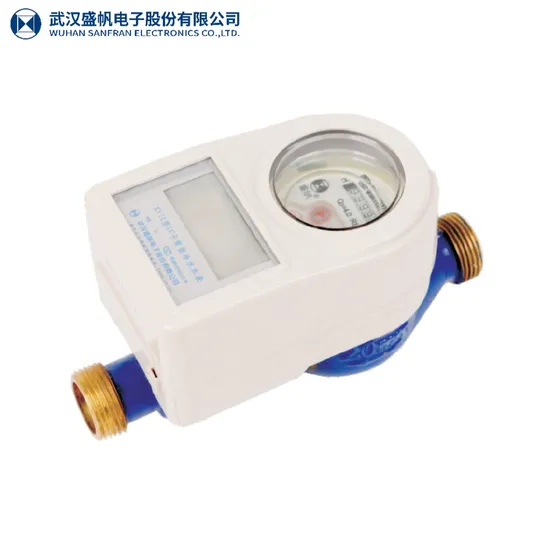

RS485 Valve Control Smart Card Prepaid Water Flow Meter

Product Description

SVIL/R RF Card Prepaid Smart Water Meter
Introduction:
SVIL/R RF Card/RF CPU Card Cold/Hot Smart Water Meter is a smart cold/hot water metering device with prepaid function. It is based on a wet water meter and is composed of a high-reliability automatic control device. And combined with the water sales system to achieve prepaid management and control functions; it is an intelligent water metering product that integrates prepayment, status alarm, and prevention of improper use. It is an ideal smart water metering and charging device for water supply companies and water management departments.
The product performance index conforms to GB/T778-2018.
Functions and Features: (★Basic function☆Optional function)

★IC card prepaid	★Protection level IP68
★High reliability, low power consumption	★Battery can be replaced
★Sound and light alarm prompt	★Shut off valve when power off
★Anti-magnetic interference, anti-disconnection attack	★Data will not be lost when power off
★Multiple anti-theft designs	☆Remaining usage is always displayed
☆Communication method: M-Bus/RS-485	☆Water, electricity, gas, heat in one card
☆Multi-level ladder water price	☆One card with multiple meters
☆Remaining usage is always displayed

Specification:

Model size	SVRL/R-15, SVRL/R-20, SVRL/R-25
Measurement range ratio(Q3/Q1)	R=80,100,160
Working temperature	Cold water meter: 0.1~30ºC; Hot water meter 0.1~90ºC;
Minimum allowable working pressure	0.03MPa
Maximum working pressure	1.0MPa
Pressure loss grade	△P63
Environment humidity	≤95%
Climate and mechanical environment safety grade	B
Electromagnetic Compatibility	E1
Service life	>6 years
Accuracy class	Class 2
Communication method	M-BUS(RS-485 can be optional)

Flow-rate parameter (R=100)

Nominal diameter (mm)	DN 15	DN 20	DN25
Dimension (mm)	165 x 91 x 350	195 x 91 x135	225 x 91 x135
Permanent flow-rate Q3(m3/h)	2.5	4.0	6.3
Minimum flow-rate Q1(m3/h)	0.025	0.04	0.063
Transitional flow-rate Q2(m3/h)	0.04	0.064	0.1008
Overload flow-rate Q4(m3/h)	3.125	5.0	7.875

Company introduction:
WUHAN SANFRAN ELECTRONICS CO.,LTD. is a professional manufacturer and supplier of water, electricity, gas, heat and energy efficiency management solution which was founded in 1998. The company covers an area of about 30 acres, 3,000 square meters of factory buildings have been built, main products including: electric energy meter, water meter, gas meter and management platform. In 2014, it was assessed as the key high-tech enterprise of National Torch Plan. In the recent tenders of power grid, the company's total number of winning bids ranked in the top eight. The amount of annual order reaches 700 million RMB. After-sales service agencies cover 31 provinces and cities.
Under the business philosophy of "Focus, Innovation, Quality, Fair and Competent ", SANFRAN has been committed to researching solutions for smart energy meters and the extended products for more than 20 years, and has successively developed more than 100 kinds of smart energy meter with low-power consumption, long lifetime, multi-mode communication. The low-power consumption energy meter developed by SANFRAN reduced the power consumption of single-phase energy meters to 0.25W, three-phase energy meters to 0.15W (both are about 45% of the power consumption among similar electric energy meters). Since 2009, there were more than 30,000,000 low-power consumption meters running which save a lot of energy for the country. The company has accumulated to obtain national patents and software copyrights more than 200 items(including more than 35 invention patents). The single phase integrated smart prepayment meter project with low-power consumption based on switching mode power supply won the 21st Nation Invention Gold Award in 2015. And because of this, it was awarded with "Climate Solver" by WWF in 2014. There are only five companies to receive this honor. Starting from 2018, the key research direction of SANFRAN focus on the further application of big data of smart energy meter.
