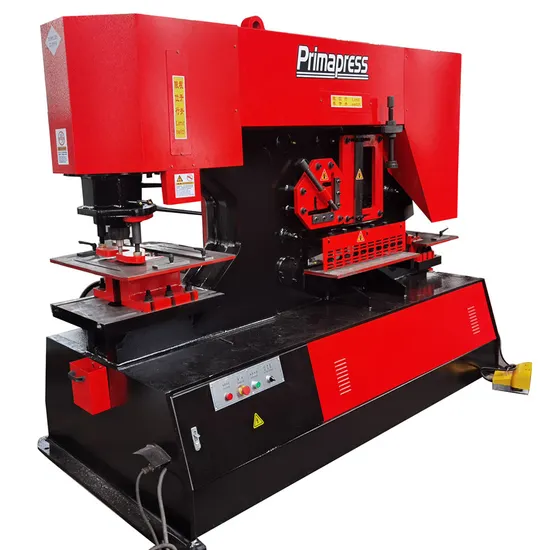

Q35y Series Combined Punching and Shearing Machine Punching Cutting Notching Hydraulic Ironworker Machine

Product Description

Q35 Series Hole Punching shear and Notching Sheet Metal Hydraulic Ironworker
Product introduction
1.Introduction to the structure and properties:
Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.Prima hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries.
2.Equipment's working environment:
1 Power supply:3Ph AC 220V/380/415 ± 10%, 50/60 HZ, optional to site. 2 ambient temperature:-10 ºC ~ 45 ºC
3.Main functions:
1)Punching: Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.
2)Shearing: Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.
3)Notching: Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an over sized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.
4)Bending: Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function.
4.Main Components list:
1, Main motor: Siemens 2, Hydraulic valves and pump: Huader, Beijing, China best. Bosch optional.
2, Electrics:SCHNEIDER 4, Sealing:NOK, Japan 5,Tools:All heating treatment
5.Technical specifications:

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Ramming strength (ton)	65	90	120	160	200	250
May cut the biggest thickness of slab	16(millimeter)	20	25	30	35	50
Sheet intensity (Newton/millimeter 2)	≤450	≤450	≤450	≤450	≤450	≤450
A traveling schedule cuts the board size (thick * wide) (millimeter)	16*250 8*400	20*330 10*480	25*330 16*600	30*330 20*600	35x400 25x700	40*400 30*750
Slide stroke	80	80	80	80	80	80
Traveling schedule number of times (/minute)	12	12	10	10	10	10
Throat opening depth	300(millimeter)	355	400	600	600	600
Punch holes thickness	16(millimeter)	20	25	26	35	40
Biggest punch holes diameter (millimeter)	25	30	35	38	40	40
Main electrical machinery power (kilowatt)	55	7.5	11	11	15	22
External dimensions (long * wide * high) millimeter	1750*830*2000	1930*900*2000	2200*1000*2100	2900*1200*2600	2970*1240*2650	3200*1440*2750
Machine weight (kg)	2000	3100	4600	7200	9500	12800

Detailed Photos:
About Prima Factory:
Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team , Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine",it is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit.
FAQ: Q1. Trade company or manufacturer?
A: We manufacturer
Q2. Is it easy to operate for the new user ?
A: very easy
Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours
Q5: Is it harmful to human body when in operation ?
A: no,very safe.
