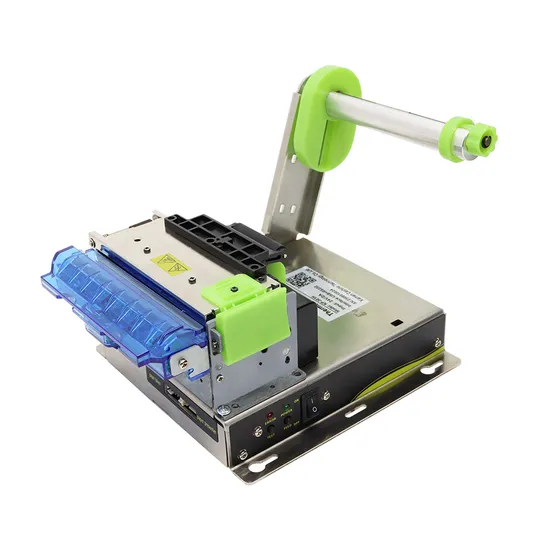

Cashino KP-301H 80mm Thermal Ticket Printer Kiosk Printer for Vending Machine
Basic Info.
Model NO.
KP-301H
Automatic Two-sided Printing
Not Support Automatic Two-sided Printing
Supply Paper Mode
Automatic and Manual Integration
Interface Type
USB+RS232+LAN/USB+RS232
Network Function
Not Support Network
Style
Black and White
Consumable Type
Thermal Paper
Max. Paper Size
80mm
Character Structure
Full-width Characters Printers
Power
DC 24V 2.5A
Black Print Speed
250mm/S
Paper Thickness
0.045-0.12mm(Optional)
Effective Printing Width
72mm/80mm (Max)
Cutter
1, 000, 000 Cuts or More
Paper Width
25-83 mm(Adjustable)
Paper Roll Diameter
150mm(Max)
Max. Resolution
203 Dpi
Specification
312.6L * 141.1W * 186H mm (presenter)
Trademark
Cashino
Origin
Xiamen, China
HS Code
84433214
Production Capacity
1000units/Month
Product Description
Product Description 250mm/s high printing speed
80mm kiosk/ticket printer module
Auto feeding/easy paper loading
Support paper presenter(optional)
Auto cutter
Near paper end detector
Take out paper sensor
Detailed Photos
Product Parameters
| Print parameters | Printing method | Line thermal printing |
| Print dot matrix | 640Dots | |
| Resolution | 203Dpi | |
| Maximum effective printing width | 72mm/80mm (Max) | |
| Print life | 100KM (Max) | |
| Printing speed | 250MM/S | |
| Multiple width adjustments | 24/48/72/80mm | |
| Paper cutting method | Partial/Full | |
| Feed method | Auto feeding | |
| Paper roll parameters | Paper roll type | Thermal ticket paper |
| Roll width | 25-83 mm(adjustable) | |
| Paper roll thickness | 0.045-0.12mm(optional) | |
| Detection function | THP temperature | Temperature sensor |
| Cover opening detection | Micro touch switch | |
| Cutter HOME point detection | ||
| Axis in place | ||
| Automatic paper feeding/paper detection | Opposing photoelectric sensor | |
| Paper near end detected | ||
| Black mark Detection | ||
| Seam detection/transmission and reception | Reflective sensor | |
| Paper output detection/paper output nozzle | ||
| Power | Input | 110V-220V |
| Output | 24V 2.5A DC±10% | |
| Average current | 2A/2.5A (25% Printing rate) | |
| Peak current | 8.5A (100% Printing rate) | |
| Character font | Requirement | ASCII 9*17,12*24, Chinese 24*24 dots |
| Size | ASCII 9×17, 12×24dots , 24×24dots | |
| Print font | Normal, 1-8 times height and width, reversed, underlined, italicized, bold | |
| 1D | UPC-A,UPC-E,EAN13,EAN8,CODE39,ITF,CODABAR,CODE93,CODE128 | |
| 2D | QRCode,PDF417 | |
| Reliability | Abrasion resistance | 100km (Max) |
| Pulse | 100 million | |
| Cutter life | 1,000,000 cuts or more | |
| Operation | Indicators | POWER LED +ERROR LED |
| Button | FEED button*1 TEST button*1 | |
| Power switch | Ship type switch * 1 | |
| Usage environment | Operating temperature | -5ºC~50ºC |
| Using humidity | 20-80%RH(No condensation) | |
| Storage temperature | -20ºC-70ºC | |
| Electrostatic protection | Contact discharge 6KV, air discharge 8KV | |
| Storage humidity | 10-90% RH (without condensation) | |
| Physical property | Product size | 312.6L * 141.1W * 186H mm including paper roll (presenter) |
| 264.2L* 141.1W * 186H mm with paper roll (anti jamming and anti- dragging) |
Company Profile
FAQ Q1.How could I get a sample?
A1:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q2.Sample time?
A2:Existing items: Within 1-2 days.
Q3.Whether you could make our brand on your products?
A3:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4.Whether you could make your products by our color?
A4:Yes, The color of products can be customized if you can meet our MOQ.
Q5.How to guarantee the quality of your products?
A5: 1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.
