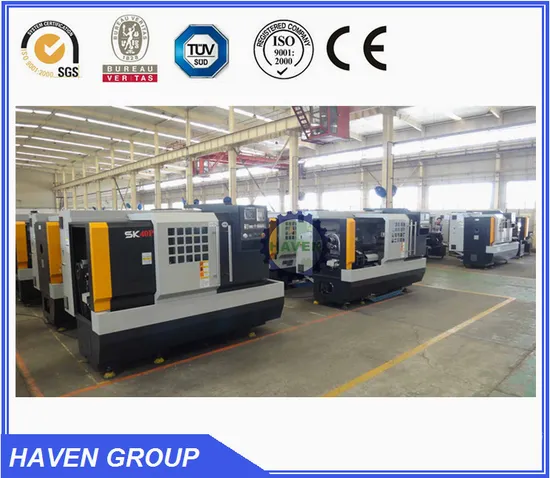

SK40P CNC Horizontal Lathe Machine

Product Description

SK40P CNC Horizontal Lathe Machine
Main features:
SK40P horizontal CNC lathes that spindle speed are changed mechanically in three gears together with control of a frequency
Changer. The lathe has 4 types (750, 1000, 1500, 2000). Equipped with 4-station (standard)/ 6-station turret (optional), the lathes are available for different cuttings. The sliding door ensures the operator's safety.
CNC systems such as Guangzhou 980T, FANUC 0i Mate-TD, Huazhong 21T, Sinumerik 802C basline/802DSL,
Dasen 3i, KND1000T, etc. Is provided on request. The lathes can perform internal and external cylindrical turning, arbitrary
Taper turning, arc turning, facing and threading. They are suitable for various middle or small batch production, especially for
Complicated and high accuracy workpieces.
Main specification:

ITEMS		UNIT	SK40P	SK50P
Capacity	Max. swing dia. over bed	mm	Φ 400	Φ 500
	Max. swing dia. over carriage	mm	Φ 200	Φ 280
	Max. turning diameter	mm	Φ 400/Φ 350*	Φ 500/Φ 350*
	Distance between centers	mm	710/960/1460/1960 (620/870/1370/1870)*
	Max. turning length	mm	570/820/1320/1820 (500/750/1250/1750)*
Spindle	Type of spindle nose		ISO 702/II D8 Short-taper cam-locking type
	Spindle bore diameter	mm	Φ 77
	Spindle speed	rpm	3-step 21-1620 H: 162-1620 M: 66-660 L: 21-210
	Max. torque of spindle	N. m	800
	Spindle drive motor power(continuous or 30minutes)	kW	7.5
Tailstock	Quill diameter	mm	Φ 75
	Quill travel	mm	150
	Tailstock quill taper	.	Morse No. 5
Turret	X/Z rapid traverse rate	m/min	6/12
	Number of tool stations		4(6 Option)
	Tool section	mm	25× 25
	X travel	mm	300
	Z travel	mm	650/900/1400/1900
Others	Dimensions(L)	mm	2250/2500/3000/3500
	(W)	mm	1370
	(H)	mm	1690
	Package dimensions (L× W× H)	mm	2550/2800/3300/3800× 1920× 2200
	Net weight	kg	2050/2100/ 2150/2200		2100/2150/ 2200/2260
