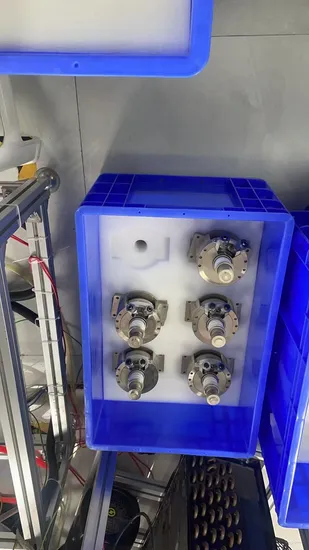

2450MHz Magnetron 15kw
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ACME-2091
Installation
Plug-in Triode
Working Frequency
2450MHz
Power Level
High Power
Function
Power Triode, Switching Triode
Structure
Alloy
Material
Germanium
Input
220V/380V
Input Mode
1 Phase 2 Wires/3 Phase 4 Wires
Power
6kw
Output Frequency
2450MHz
Efficiency
90%
Duty Cycle
0-50%
Transport Package
Wood Packing
Specification
6kw/10kw/15kw
Trademark
ACME
Origin
Jinan
HS Code
8540710000
Production Capacity
300PCS/Month
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
3.000kg
Product Description
Product introductionThe tube is a fixed frequency continuous wave magnetron with a wavelength of 12cm, which can directly excite the rectangular waveguide for microwave heating as a power source.
Main performance
Frequency 2450 ± 30MHz
Output power ≥ 15kw
Anode voltage 12.6kv
Anode current 1.8A
Filament current 29a
Filament voltage ≤ 12V (subject to filament current)
The magnetic field is about 1450gs
Load voltage standing wave ratio ≤ 2
Limit service value
Filament surge current < 86A
Cathode preheating time ≥ 60s
Anode current ≤ 1.9a
Anode input power ≤ 24kw
Load voltage standing wave ratio ≤ 2.5
Anode temperature (designated test point) ≤ 100 ºC
Cathode outlet temperature (designated test point) ≤ 150 ºC
| Code | Min | Normal | Max |
| A B C | 52.8 φ52.8 - | 53.0 φ53.0 - | 53.2 φ53.2 φ89 |
| D E | φ35.8 φ38.4 | φ36.0 φ38.6 | φ36.2 φ38.8 |
| F G H I J K | - - - - - - | φ36.6 30° 212 58 135 93 | - - - - - - |
