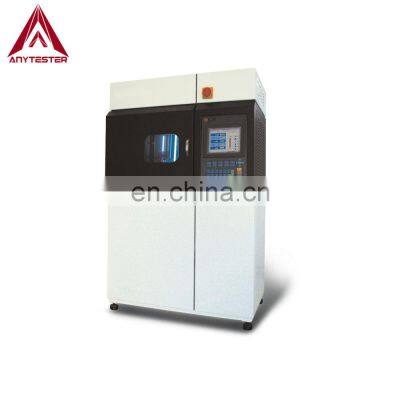

AATCC TM16 Air cooled Weather-Ometer with Touch Screen

Product Description

Product Description
Product DescriptionHY0611 Air-cooled Weather-Ometer is used to determine the color fastness to light, color fastness to weather of various colored textiles in color fastness experiments and also to determine the color fastness to light, light aging of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.StandardAATCC TM16JIS 0843ISO105-B04ISO105-B02GB/T8427GB/T14576GB/T15102-2006GB/T15104-2006GB/T8430SpecificationModelHY0611Light source3300W air-cooled xenon arc lampTest chamber temperature and accuracyR.T ～ 80℃, ±3℃Test chamber humidity and accuracy10～70%RH, ±5%RHTest time and accuracy1000h, ±6sIrradiance range42W/m2 ±0.02W/m2 @ 300~400nmMax. sample size135×45mm (18pcs)135×75mm (10pcs)Both sides can clamp samplesMax. exposure area100*29mm or 100*19.5mm (18 pcs)100*65mm or 100*27.5mm (10 pcs)Speed of sample bracketRevolution: 5r/minRotation: 180°/rSample clamps timing range0~1000h, respectivelyBlack standard thermometer30～110℃±0.2℃Black panel thermometer30～100℃±2℃Power supplyAC220V±10%, 50Hz, 6.5kWDimensions1200×730×1720mm (L×W×H)Weight213kgDetails & Features★ Digital setting of light intensity, real-time monitoring, automatic adjustment★ Equipped with black panel thermometer (BPT), black standard thermometer (BST), irradiance detector at the same position (in equidistance) to real indicate measuring state of samples, test data synchronously transmitted by using technology of radio frequency and digital displayed on the color screen★ Test and radio transmission are powered by using light conversion technology, no additional power supply is required★ 10.4inch color touch screen display, with various test monitoring modules (animation, digit, chart), easy to operate, visual and clear★ Respective timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost★ Adopt 2500W long-arc xenon lamp to real simulate sunlight spectrum★ With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber★ Ultrasonic humidification and professional dehumidification system guarantee the accuracy and stability of test humidity★ Natural circulation system and air filter system inside reduces the environmental requirements greatly★ One test can run for 1000 hour continuously with quality guaranteeOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
