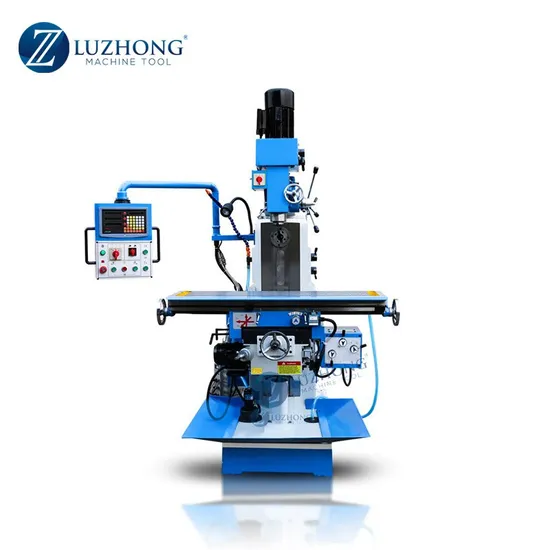

Vertical Knee type Manual ZX6350A Metal Universal Milling And Drilling Machine
Basic Info.
Model NO.
ZX6350A
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Cheap Vertical Knee type Manual ZX6350A Metal Univ
Max. drilling dia.(mm)
50
Max. end milling width(mm)
100
Max. vertical milling dia.(mm)
25
Max.boring dia.(mm)
120
Max. tapping dia.(mm)
M16
Distance from spindle nose to table surf
80-460
Spindle taper
MT4(V) IS040(H)
Table size(mm)
1200X280, Optional: 1500X280
Table travel(mm)
600X280, Optional: 1000X280
Spindle motor power (kw)
1.5/2.2(V) 3(H)
Transport Package
Plywood Case
Specification
1580x1330x2250mm
Trademark
Luzhong
Origin
China
HS Code
8459290000
Production Capacity
100
Packaging & Delivery
Package Size
150.00cm * 140.00cm * 250.00cm
Package Gross Weight
1600.000kg
Product Description
Cheap Vertical Manual ZX6350A Metal Universal Milling And Drilling MachineProduct Description
The main performance characteristics:
1. Vertical and horizontal milling head
2.X /Y/Z axis auto feed
3.vertical spindle manual feed and micro feed
4.Guide way with sparking quenching
Product Parameters
Product main technical parameters:
| SPECIFICATIONS | Units | ZX6350A |
| Max. drilling dia. | mm | 50 |
| Max. end milling dia. | mm | 100 |
| Max. vertical milling dia. | mm | 25 |
| Max.boring dia. | mm | 120 |
| Max. tapping dia. | mm | M16 |
| Distance between spindle nose and table surface | mm | 80-460 |
| Spindle taper | - | MT4( V) IS040( H) |
| Spindle speed range | rpm | 40-1400( V) 40-1300(H) |
| Spindle travel | mm | 120 |
| Table size | mm | 1200*280 0pt.l500*280 |
| Table travel | mm | 680*280 0pt.l000*280 |
| Worktable auto feed | mm/min | X/Y:22-555 Z:300 |
| Main motor power | kw | 1.5/2.2( V)3( H) |
| Machine weight | kg | 1500 |
| Overall dimension | mm | 1450*1400*2350 |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
