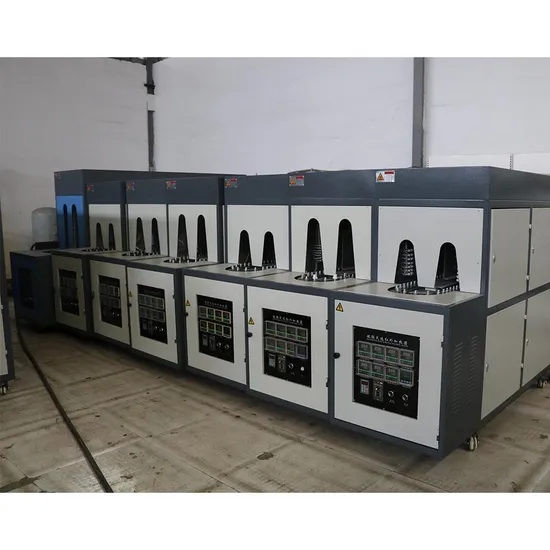

Pet Material Container Blowing Machine

Product Description

semiautomatic Blow Molding Machine
. Engineering item:
1.Capacity: 200-300pcs/hr (based on 10L)
2.Capacity: 400-600pcs/hr (based on 5L)
2. Max volume of product: 10 liter
. Description:
Technique Parameter of blow molding machine:

Main parameter:
Model	GMS-10L
Container	Product material	PET
	Volume	10L
	Theoretical output	300-500PCS/H
	Preform length	15mm-460mm
	Preform inner diameter	Φ15mm-200mm
Moulding	Max.mould plate Dimenstion(L x W)	470x500mm
	Max.mould thickness	370mm
	Clamping force	100KN
	Mould opening stroke	350mm
Machine size and weight	Main machine (L x W x H)	193*72*183cm
	Main machine weight	800Kg
	Heater (L x W x H)	187*63*145cm
	Heater weight	250Kg
	Power	17.5kw

Trait:
GMS-10L semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 5000-10000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi- auto mode.
The machine is small with low investment, easy and safe to operate by one person.
