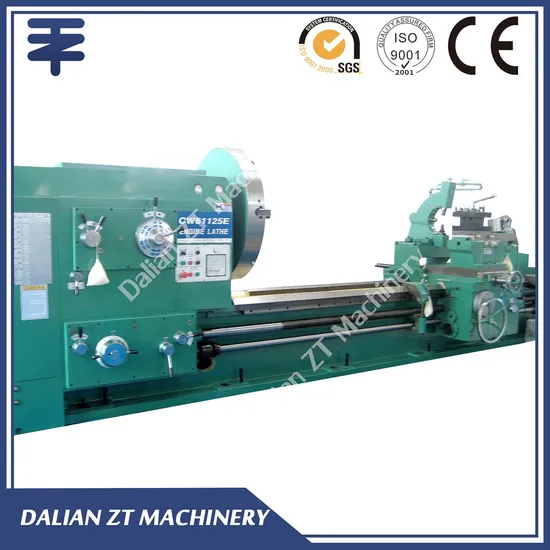

Large heavy cutting metal Horizontal CNC lathe
| US$25,000.00-55,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CW61125E
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Position
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
1000mm
Turning Length
1500-16000
Width of Bed
750mm
Spindle Bore
100/130mm
CE
Yes
Travel of tailstock quill
300mm
Transport Package
Wooden Case
Specification
swing 1000mm
Trademark
ZT
Origin
China
HS Code
84581900
Production Capacity
1000 Sets/Year
Product Description
Features:Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate;Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubber and shipbuilding etc..The lathe is suitable to machine large sized parts, such as disc type, rubber roller; it can also cut tread, drill hole and bore hole.
| Item | CW61100E | CW61125 | CW61140 | CW61160 |
| Max. swing over bed | 1000mm | 1250mm | 1400mm | 1600mm |
| Max. swing over gap | 1250mm | 1500mm | 1930mm | 2110mm |
| Max. swing over carriage | 650mm | 900mm | 1100mm | 1280mm |
| Max. Turning length | 1500~16000mm | 1500~16000mm | 1500~16000mm | 1500~16000mm |
| Max. Workpiece weight between centers | 6000;8000kg | 6000;8000kg | 6000;8000kg | 6000;8000kg |
| Width of bed | 755mm | 755mm | 970mm | 970mm |
| Spindle nose | ISO A2-15 | ISO A2-15 | ISO A2-15 | ISO A2-15 |
| Diameter of spindle front bearing | 200mm | 200mm | 200/220mm | 200/220mm |
| Diameter of spindle bore | 130mm | 130mm | 130/100mm | 130/100mm |
| Spindle taper | Metric No.140mm | Metric No.140mm | Metric No.140mm | Metric No.140mm |
| Number of spindle speeds | 21 steps; manual | 21 steps; manual | 21 steps; manual | 21 steps; manual |
| Spindle speed range (r/min) | 3.15~315 | 3.15~315r/min | 2.5~250r/min | 2.5~250r/min |
| Main motor power | AC22kW | AC22kW | AC22kW | AC22kW |
| Tool shank section | 32x32mm | 32x32mm | 45x45mm | 45x45mm |
| Diameter of tailstock quill | 160mm | 160mm | 160mm | 160mm |
| Taper of tailstock quill | Morse No.6 | Morse No.6 | Morse No.6 | Morse No.6 |
| Travel of tailstock quill | 300mm | 300mm | 300mm | 300mm |
| Weight of machine (3m length) | 10800kg | 11500kg | 12200kg | 13200kg |
| Additional weight per 1 m BC | 1200kg | 1200 | 1400 | 1400kg |
| Overall dimensions of machine (3m length) | 6100x1900x2000 | 6100x2000x2200 | 6360x1960x2400 | 6360x2060x2500 |
PACKING & SHIPMENT
FAQ
1. MOQ
1 set
.
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
