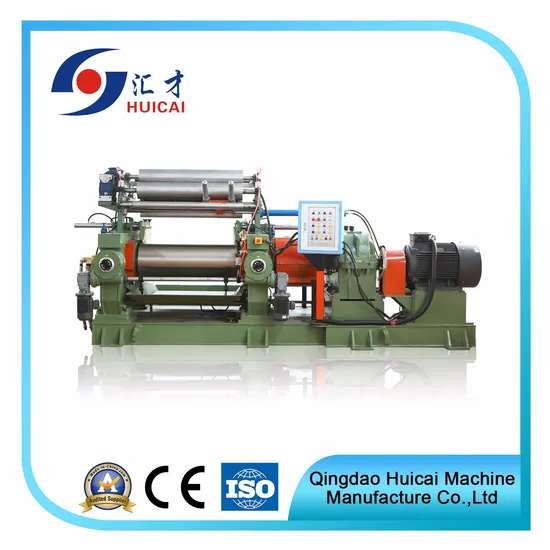

Xk-610 Open Rubber Mixing Mill Machine Two Roll Rubber Mixing Mill Machine

Product Description

Product Description

XK-160 XK-250 XK-300 XK-400 XK-450 XK-560 XK610 RUBBER MIXING MILL
Product Parameters
1. Roller is made by special technology. There are normal roller and alloy roller for the customer to choose.
2. All of these adopt hardened gear reducer made of 35CrMo to reduce the speed. It has the advantages of low noisy, large transmission power, wear-resistant and impact resistance.
3. Adopt quenching gear to drive and increase the life of the whole machine.
4. Adopt foreign technology to weld the steel pedestal which is non-deformation, non-fracture. It can avoid the expense caused by wrong operation.

model	XK-160	XK-230	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560	XK-550B	XK-660
(mm)Working diameter of rolls	160	230	250	300	3360	400	450	560/510	550	660
(mm)Working length of rolls	320	600	620	750	900	1000	1200	1530	1500	2130
(m/min)Front roll surface speed	8.95	10.21	14.1	15.1	16.25	18.65	24.26	27.72	27.94	28.6
Friction ratio	1:1.35	1:1.19	1:1.17	1:1.25	1:1.25	1:1.27	1:1.27	1:1.2	1:1.22	1:1.24
Max.nip(mm)	4.5	7	8	10	10	10	15	15	15	15
Capacity per.batch(kg)	1~2	6~10	8~15	15~20	20~25	18~35	25~50	35~50	50~60	165
Motor power(kw)	5.5	15	18.5	22	30	37	55	90	110	245
(mm)Overall dimension: Length*Width*Height	1380* 860 *1320	2800 *1200 *1120	3400 *1500 *1500	3450 *1500 *1550	3780 *1850 *1750	4350 *1850 *1785	5200 *2380 *1840	5845 *2284 *1978	5870* 2475* 2045	7465 *3662 *2080
