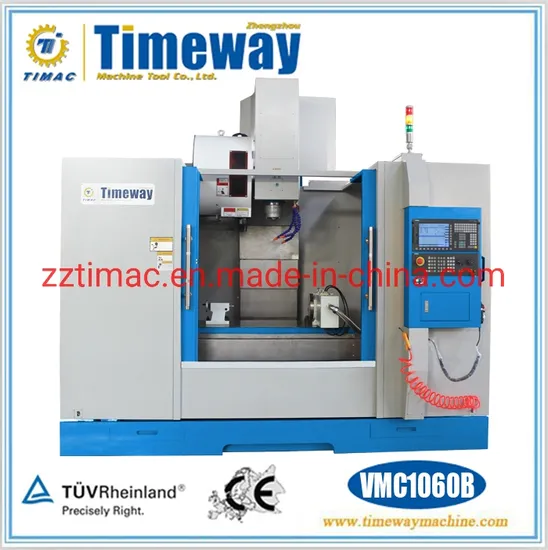

High Speed CNC Machining Center (VMC1060B VMC1060BL)

Product Description

Vertical Machining Center VMC1060B & VMC1060BL
Table size: 1300x600mm
Table travel(X/Y/Z): VMC1060B --- 1000/600/700mm
VMC1060BL --- 1100/650/700mm
Standard Accessories:
FANUC 0i mate MD CNC system;
Sliding guideway for VMC1060B;
Linear guideway for VMC1060BL;
8000rpm high speed BT40 spindle from Taiwan;
Umbrella type ATC with 16 tools capacity from Taiwan;
Separated electronic handwheel;
Interval auto-lubricating;
Full splash guard;
Ball screw from Taiwan;

Optional Accessories:
The 4th axis / The 5th axis;
FANUC 0i MD, SIEMENS, or other CNC system;
Disc type ATC with 24 tools capacity;
Auto. chip conveyor;

Specification	Unit	VMC1060B	VMC1060BL
Table size	mm	1300x600	1300x600
X-axis travel	mm	1000	1100
Y-axis travel	mm	600	650
Z-axis travel	mm	700	700
Guideway type		Sliding guideway	Linear guideway
Spindle center to column guideway surface	mm	630	630
Spindle nose to worktable	mm	140-840	140-840
T-slot No./width/distance		5/18/100	5/18/100
Spindle taper		BT40	BT40
Max. spindle speed	rpm	8000	8000
Rapid feeding of X, Y axis	mm/min	15000	20000
Rapid feeding of Z axis		12000	18000
Tool magazine capacity		16	16
Magazine type		Umbrella type
Max. diameter of tools	mm	φ80/φ130	φ80/φ130
Max. length of tools	mm	300	300
Main motor power	kw	7.5/11	7.5/11
Max. loading of worktable	kg	800	800
Machine weight	kg	6600	6800
Overall dimension(LxWxH)	mm	3200x2480x2960	3200x2480x2960
