Transformer/Cable Insulation Resistance Tester Multiple Gears Adjust High Voltage Tester

Product Description

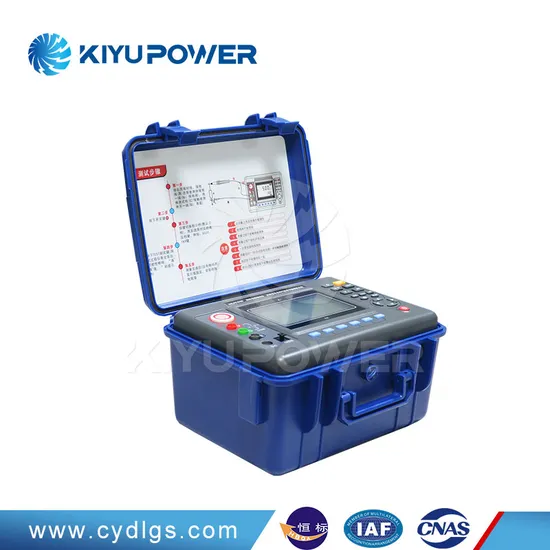

CYJY-624 Digital Insulation Resistance Tester
This insulation resistance tester is composed of medium and large scale integrated circuits. It has arge output power, 6 output voltage levels,
synchronizing test absorption ratio and polarization index.

Kind Note: Insulation resistance testing must be working under no living circuits.
Technique Parameters:

Functions	Insulation resistance testing, voltage testing
Basic Terms	23ºC± 5ºC, less than 75%rh
Rated Voltage(V)	100, 250, 500, 1000, 2500, 5000
Measuring Voltage(V)	Rated voltage x (1±10%)
Insulation Resistance Range(GΩ)	0.01MΩ~1000GΩ
Insulation Resistance Resolution	0.01MΩ
DC Voltage Range	0~1000V
DC Voltage Resolution	0.1V
AC Voltage Range	0~750V
AC Voltage Resolution	0.1V
Output short-circuit Current	≥5mA(5kV)
Absorption Ratio & Polarization Index	Yes
Power	12V charge lithium battery
Background	Adjustable pale screen background light, suitable for gloomy lots using
Display Model	4 bytes large LCD display, pale screen background light
LCD Display Size	108mm x 65mm
Instrument Sizes	Length/Width/Height 277.2mm x 227.5mm x 153mm
USB Interface	USB interface, software monitoring, reserved datas can be upload to computer, save and print
Communicating Line	USB communicating line 1 set
Testing Line	HV rod red 3m, hv testing line black 1.5m, green line 1.5m
Data Reserve	500 groups, flash display"FULL" means data reservation is full
Data Inquiry	Data inquiry function: "READ" mark display
Spilling Display	Over measurement spilling function: "OL" mark display
Alarm Function	Alarm prompt when the measuring value exceeds setted value
Power Consumption	Standby: 30mA Max(background turns off)
	Power on background turns on: 42mA Max
	Measure: 300mA Max(background turns off)
Instrument Weight	2720g(include batter)
Battery Voltage	when the battery voltage isn't adequate, it shows low energy mark"
Auto Turns off	Auto turns off if there is no operation in 15 mins
Insulation Resistance	≥50mΩ(between testing line and housing)
Withstand Voltage	AC3kV/50Hz 1 min
Working Temperature and Humidity	-10ºC~+50ºC<85%RH
Save Temperatur and Humidity	-15ºC~+55ºC<90%RH
Suitable for Specifications	IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529(IP54), Pollution level 2, CAT III 300V
