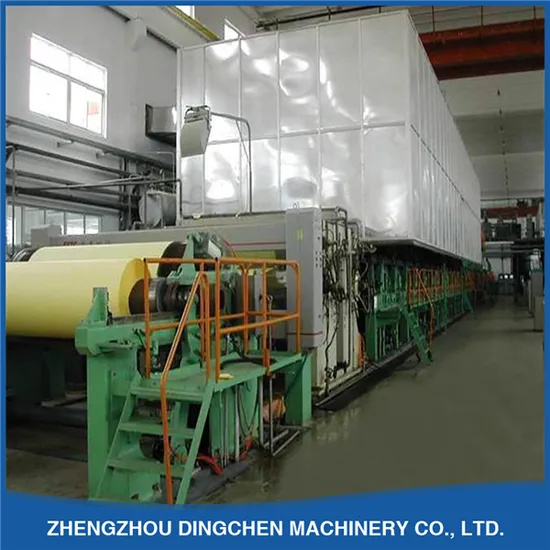

Paper Industry Machines Dingchen Manufacture Carton/Liner Paper Making Machinery

Product Description

Paper Industry Machines Dingchen Manufacture Carton/Liner Paper Making Machinery

Technical parameter:

1	Raw materials	waste paper
2	Output paper	carton paper,liner paper
3	Net paper width	2880mm
4	Output paper weight	120-150 g/m2
5	Capacity	50 T/D
6	Working speed	110-120m/min
7	Designing speed	160m/min
8	Rail gauge	3800mm
9	Drive way	Alternating current frequency converter speed control, sectional drive.

Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips

Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
The main structure and Equipments:
1.Cylinder part: Ф1500mmx 3350mm stainless-steel plate cylinder, 4pcs;Φ450mm×3350mm couch roll,5 pcs,including one reverse roll; rubber hardness HS-38ºC±2,pneumatic loaded device,multitube for pulp,stainless
2.Squeeze part: Φ4000mm×3450mm squeeze roll,2 pcs, rubber hardness HS-90ºC±2, pneumatic loaded device
3.Pre-press part: Φ6500mm×3350mm top roll,one pcs of natural marble stone roll; Φ6000mm×3350mm bottom roll, one pcs of rubber roll; rubber hardness HS-95ºC±2, pneumatic loaded device
4.Press part :Φ8500mm×3350mm, 2 pcs of natural marble stone rolls ; Φ8000mm×3350mm rubber roll,2pcs; rubber hardness HS-97ºC±2, pneumatic loaded device
5.Dryer part: Φ1500mm×3350mm alloy dryer can 12 pcs, 12 sets of blades
6.Calendaring part: Φ7500mm×3350mm calendaring roll,2 pcs, hardness 72ºC±2, solid
7.Reeling part: one set of 2880 horizontal pneumatic reeler, one set of winding sweat cylinder(Φ1100mm×3100mm)
8.Rewinding part: one set of 2880 frame-type rewinding machine

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
