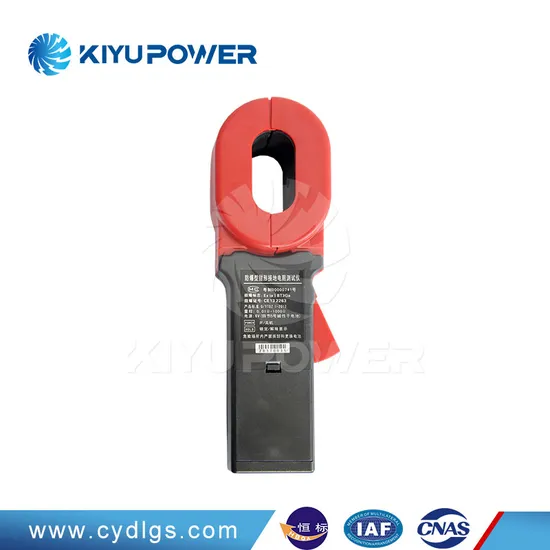

Digital Clamp on Earth Resistance Tester / Ground Resistance Meter

Product Description

Product Description:
CYJD-611 clamp ground resistance tester is a major technological breakthrough in traditional grounding resistance measurement. It is widely used in the grounding resistance measurement of electric power, telecommunications, meteorology, oilfield, construction and industrial and electrical equipment. When measuring circuit grounding system, it is not necessary to disconnect the each connection wire and use auxiliary electrode, it is safe and quick, easy to use. Can measure the grounding fault, which can not be measured by the traditional method, because this instrument measure the integrated value of grounding resistance and ground lead resistance, apply to the occasion that can not use the traditional method.
Product Features:
1.Apply to all kinds of ground lead.(round bar, flat bar, angle iron).
2.Non-contact measured grounding resistance, safe, fast.
3.Without using assistant ground rod. Without interrupting the grounding of the device under test.
4.With double protecting insulation.
5.With strong anti-interference ability and high accuracy.
6.Use 5# alkaline batteries, convenient for users.
Product Parameters:

Power Supply	6VDC(4pcs 5#alkaline battery)	Working Temperature	-10ºC~55ºC
Relative Humidity	10%~90%	Size of Clamp	Square clamp: length 293mm, width 90mm, thickness 66mm
Jaw Opening Size	Square jaw: 28mm; round jaw; 32mm	Weight (include battery)	Square jaw 1320g; round jaw 1120g
Measurement Range Conversion	Auto	External Magnetic Field	<40A/m
External Electric Field	<1V/m	Single Measurement Time	1 second
Measurement Frequency	>1kHz	Max Measurement Resolution	0.001Ω
Measurement Range	0.01~1000Ω	Current Measurement Range	0.00~30.0A
Tested Current Frequency	45~65Hz	Storage Capacity	50 groups
Setting Range of Critical Value Resistance Alarm	1~199Ω	Setting Range of Critical Value Current Alarm	1~499mA
