Stainless Steel Bulk Bag Unloader Big Bag Unloading Station

Product Description

Stainless Steel Bulk Bag Unloader Big Bag Unloading Station Product Description
Brief description:
Stainless Steel Bulk Bag Unloader Big Bag Unloading Station is a specialized equipment designed for feeding and unpacking large packaging bags, specifically addressing issues such as dust overflow and excessive dust emissions during the feeding process. It is primarily used for unpacking and unloading granular and powdered materials contained in bulk bags, including food ingredients, chemical raw materials, additive, lithium battery industry, rubber and plastic industries, energy batteries, paint industry, and the coatings industry. Two models are available:
1. D-TL-1 Suitable for big bag (larger than 1 ton) unloading
Working principle:
The Big Bag Unloading Station lifts the bulk bag to the top of the feeding inlet of the equipment through the electric hoist. The inner bag of the big bag is manually fixed at the clamping mouth of the equipment, and the big bag is clamped and sealed by the bag holder to prevent dust overflow. The bag is then manually opened and unloaded, aided by devices such as beaters and vibrators, to facilitate complete unloading of the material inside the bulk bag. The unloaded material can be directly fed into the equipment of the next process or used for unpacking and feeding in pneumatic conveying or screw conveying systems.
1. D-TL-2 Suitable for big bags and small bags unloading
Working principle:
D-TL-2 series big bag unloading machine added the feeding function of small bag packaging materials based on D-TL-1 Big bag unloading station. When unpacking big bags, it is equivalent to D-TL-1. When unpacking small bags, the dust collection fan of the dust collection box can avoid the material dust flying everywhere. When the material is unpacked and poured into the next process, it only needs to be manually unpacked directly into the system. When the material passes through the vibrating screen, the big size material and foreign matter can be intercepted, so as to ensure the removal of particles which are unqualified.
Main features:
1. Meet GMP certification and food hygiene certification standards. Applicable field: food, chemical, additive, lithium battery industry and other industries.
2. According to different materials it is made of mild steel, stainless steel 304, stainless steel 316, Ti steel, etc.
3. Simple structure, easy operation, enclosed and no dust flying. Improve the working environment, sealingwell, no leakage, less residue.
4. According to the variety of packaging specifications, bag filling rate and material characteristics, etc., it can be designed according to customer requirements.
5. It can work with vacuum feeder, screw conveyor, vibrating feeder and other conveying machines to transfer the material into next production equipment, such as mixer, silo, reactor, vibrating screen, etc.
Product Parameters

Stainless Steel Bulk Bag Unloader Big Bag Unloading Station
Equipment height	[3000mm, 5000mm]	Air consumption	(0L/min, 0.6L/min)
Bag caliber	300mm	Vacuum flow	(0L/min, 90L/min)
Air source pressure	6bar	Vacuum pressure	(-92.5kpa, 0kpa)
Equipment weight	[1000kg, 5000kg]	Throughput (capacity)	(0.1T/h, 6Т/h)
Blanking butterfly valve caliber	[150mm, 200mm]	Item restrictions	Sticky material
Applicable Material Properties
Material Type	Powder	Granule	Liquid
Material temperature	[-10ºC, 70ºC)	[-10ºC, 70ºC)	/
Material Humidity	(0%RH, 20%RH)	(0%RH, 20%RH)	/
Material particle size	(0.2um, 10mm)	(0.2um, 10mm)	/

Notes: The parameter above is just for reference. Please contsct us to get more details information.
Product Show

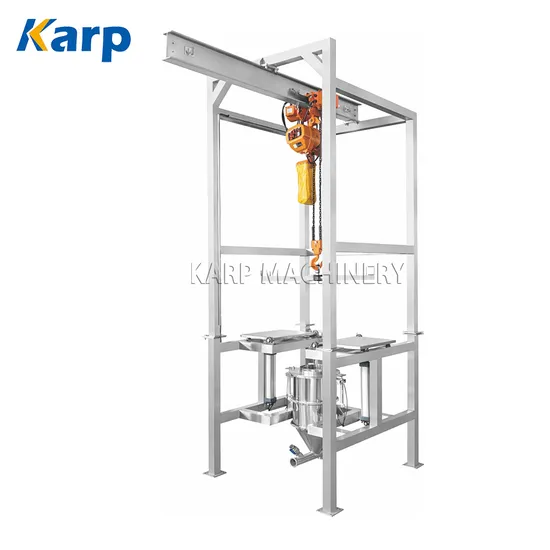

D-TL-1 Big Bag Unloading Machine made of stainless steel
Small bag unloading station on the D-TL-2 bulk bag unloading system
Stainless Steel Bulk Bag Unloader Big Bag Unloading Station
Big Bag Unloader works with vacuum conveyor Big bag unloading station works with screw conveyor Big Bag Unloading Station with carbon steel frame
Application
Stainless Steel Bulk Bag Unloader Big Bag Unloading Station is mainly used for unpacking and unloading big bags of granular and powdery materials in food industry, chemical industry, additive, lithium battery industry, rubber and plastic industry, energy batteries industry, paint industry, etc. 1. All dry, well-flowing materials, such as fertilizers, animal feed, flakes, cereals, sugar, metallurgical concentrates, wood pellets, floor screeds, cement, circulating products, soil, peat, etc. 2. Plastic resins and food additives and other dry powder and granular materials. 3. Flavors and fragrances, monosodium glutamate, adsorbents, catalysts, graphite, rouge, blush, polyethylene, polypropylene, polyoxyethylene, fertilizers, feed, premixes, additives, laundry powder, salt, monosodium glutamate, chicken essence, sugar, seeds and other materials. 4. Bulk bag packaging materials with poor fluidity, easy moisture absorption and caking. Related Products
Vacuum conveyor Small bag dumping station Screw conveyor
Round vibrating screen In-line vibrating sieve Tumbler screen
Packaging & Shipping
Packing for Stainless Steel Bulk Bag Unloader Big Bag Unloading Station. Outside package: standard export wood box. Inner package: stretch film for machine, accessories in carton. Optional shipping type: Support Sea freight Company Profile
Xinxiang KARP Machinery Equipment CO.,Ltd is one of the leading manufacturers of vibrating screen sifter, conveying machines, feeding machines, elevating machines and related products with 11-year designing and manufacturing experiences.
We are committed to solve all screening and conveying problems of bulk materials. Depending on the quality as the life of enterprise, we have won our customers' identity with professional solution, high quality products, perfect service. Our main products are vibrating screen, round separator, rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, vacuum conveyor, bag unloader (Stainless Steel Bulk Bag Unloader Big Bag Unloading Station), vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, additive, lithium battery industry, chemical, metallurgy, building materials, mining, environmental protection and other fields. Warmly welcome friends from all over the worlds to our company, we look forward to sincere cooperation and mutually beneficial development with you. Our CE certificate:
Our customers:
Warmly welcome friends from all over the worlds to our company, we look forward to sincere cooperation and mutually beneficial development with you.
Our equipment has been widely praised:
FAQ
The proper selection of the Stainless Steel Bulk Bag Unloader Big Bag Unloading Station depends on the raw material, bag size, required capacity, with hopper or vibrating screen, etc:
1. Material:_____, bulk density:_____kg/m3
2. Bag dimention: length_____mm, width_____mm, total height of the bag including the lifting lugs_____mm, weight_____kg
3. Capacity:________bags/ hour
4. What is the height limit of your house?
5. Feed to which machine? 6. Voltage:______V, Frequency:______HZ, 3 phase
7. SS304/316L stainless steel or carbon steel?
Q: How long for the manufacturing time?
A: 10-15 working days.
Q: How long for warranty time?
A: 13 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation.
Q: How can we guarantee the quality?
A: We provide a set of the sealing parts and installation tools of vibrating screen with our machine for free. And one year warranty period.
Q: What can you buy from us?
A: We provide one stop solution for powder materials: screening, conveying, weighing, mixing, packing and dumping.
