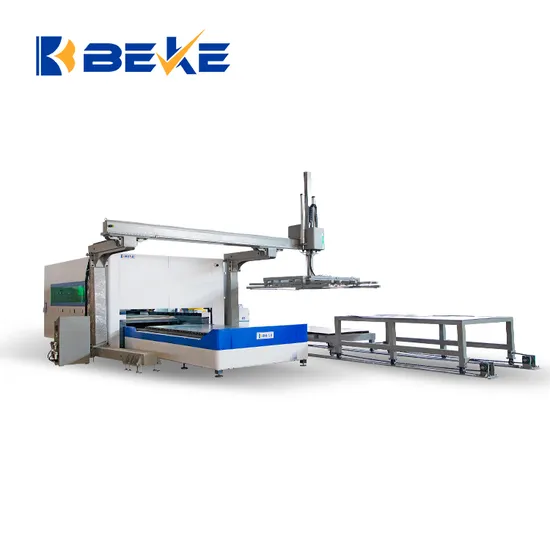

Fiber Laser Cutting Machine 12000W Cutter Enclosed Laser Cutting Machine
Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Fiber Laser Cutting
Laser Type
Fiber Laser
Cooling Method
Water-Cooling
Standard Output Power
12000W
Effective Cutting Range
3000mm*1500mm
Rated Power Consumption
12kw
Cuttable Material
Stainless Steel, Carbon Steel, Aluminum, Copper,
Workbench Mechanical Precision
+/- 0.03mm/M
Repeatability
+/- 0.02mm/M
Iaser Repetition Rate
Cw
Laser Wawelength
1070nm
Transport Package
Container Directly
Specification
9500*2300*2500mm
Trademark
BEKE
Origin
China
HS Code
8456110090
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| ITEMS | VALUE |
| Model | BK-12000W-3015 |
| Laser Type | Fiber Laser |
| Laser working medium | YVO4 |
| Laser wavelength | 1070nm |
| Rated output power | 12000W |
| Beam quality | <0.373mrad |
| Effective cutting range | 3000×1500mm |
| Axial positioning accuracy of workbench | ≤±0.03mm/m |
| Table repeat positioning accuracy | ±0.02mm |
| Maximum positioning speed | 120m/min |
| The maximum load of the workbench | ≥1500KG |
| Number of phases | 3 |
| Power supply rated voltage | 380V |
| Frequency | 50Hz |
| Overall power protection level | IP54 |
| The new closed design, double table fast exchange, while processing edge cutting, fast, small slitsmooth section, easy operation, low energy consumption, suitable for large quantities of continu-ous processing, highlighting cutting competitive advantage. It is a professional machine design, novel appearance and many patented technologies. lt hasthe advantages of high speed, small slit, smooth section, easy operation, low energy consump-tion , suitable for continuous processing in large quantities, and highlighting cutting competitiveadvantages. | |
| One of the control software of fiber laser cutting machine -- Bochu system. Cypress cypcut laser cutting control software is specially used for the control and operationof laser cutting machine, which is very convenient and practical. lt can achieve thebest cutting effect with the laser cutting machine. Fiber laser adopts air-cooled compact structure design, semiconductor fiber as laser generation medium, green environmental protection, simple mechanical structure, constant optical path, basically maintenance free, stable cutting performance. | |
