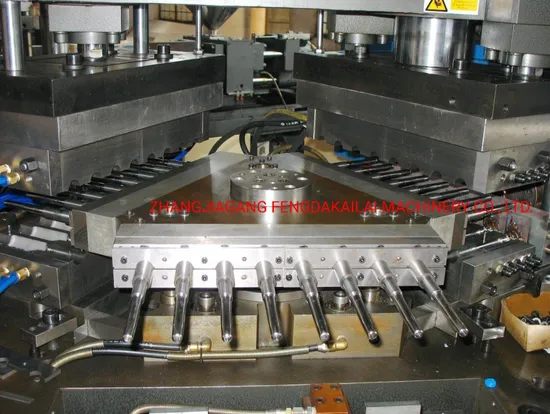

One Step Three Stations Injection Blow Molding Machine

Product Description

One step three station injection & blow molding machine is for 2-1000ml PP, PE, PC, PS, ABS, BAREX material, one layer plastic bottle making like eye dropper bottle, chewing gum bottle, lotion bottle, pill bottle etc in food, pharmaceutical, cosmetic packing industry.
Features
1. Three station, injection molding, blowing molding and mold unloading in one set. High requirement to mold, long life, save raw. Finished bottle is molded at one time, using hot runner system and high pressure injection making high precision in bottle neck and screw, 100 percent seaming with cap with little change of bottle weight, uniform wall thick, none kerf and flash, none weld line at bottom.
2. Three stations arranged at 120 degrees, reduction of the cycle time, rise in production efficiency, full-automatic with no secondary pollution.
3. Adopted hydraulic and pneumatic components of well known brands, advanced PC or computer control system leads to stable performance and easy operation.

FD30S double servo injection blow molding machine »Main Features 1.The clamping framework adopts single-crossbeam,double pillars,which enlarges the space of setting mould,will be easier to install mould. 2.Injection clamping adopts the structure of three oil vats and small supply-oil case,hence the speed of open/clamping will be quicker and the bearing pressure of mould will be more equally. 3.using tie-bar protection makes open/clamping mould work while transfer table rise/fall,so the production efficiency improve obviously,and protect core rods damages once mold hasn't at right station. 4.double servo motor system control for 30% consumption saving (Optional). 5.Special thickness working platform with QT material assure machine run stably,clamping well,anti-distortion. »Operating Principle Station A:Preform injection The bottle neck will be molded accurately after injecting the material into the cavity,After proper control,the mold open and mandrils to...along with the cavity. Station B:Blow molding Blowing action was done at this part,molding would be complete after cooling.(bottle shape decides by the mold cavity).The air came out from the mandrils huffs the cavity,make the cavity cling to the mold.Then mold open and the mandrils turn to...along with bottles. Station C:Stripper The bottle automatically will be ejected from the mandrils at this position and then to be packed.The three actions of injection/blowing/ejection working at the same time,which makes the machine of high efficiency and low waste with bottles. »Main Technical Parameters No. Item Unit FD30 FD50 FD70 1 Dia. of screw mm 40 45 50 2 Screw L/D ratio 22 22 22 3 Max. theoretical injection capacity cm³ 165 254 324 4 clamping force of injection mould kn 300 450 600 5 clamping force of blowing mould kn 55 70 80 6 pressure of hydraulic system Mpa 14 16 16 7 Max. pressure of compressing air Mpa 1 1 1 8 Wastage of cooling water m³/min ≥0.3 ≥0.5 ≥0.8 9 Range of formability product ml 1.5-2000 1.5-2000 1.5-2000 10 Height of formability product mm ≤200 ≤200 ≤200 11 Dia of formability product mm ≤100 ≤100 ≤100 12 Total power kw 24.7 36 48 13 Overal size(L×W×H) mm 3200×1150×2200 3750×1300×2300 4000×1450×2350 14 Machine weight ton 4 6 6 »Machine Main Parts Brand Key parts Brand Servo motor / VDP(Optional) Techmation/Yuken Hydraulic motor Intermote Hydraulic valve Yuken Pneumatic valve Festo Electrical valve Schendier or Omron Liner scale JEFFRAM Controller Jinghua/Omron(optional) Contactor Schendier Seals DZ Approach switch Omron »Packaging & Shipping
