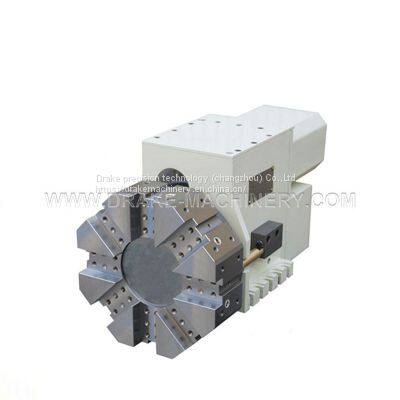

HAK36 series hydraulic NC turret power to rotate with oil-hydraulic motor, quipped with conjugate cam for indexing driving tool-disc, clamping/unclamping tool-holder disk with hydraulic force, indexing and positioning with precise curvic coupling, sending signals with proximity switch. It features smart bidirectional indexing and positioning in the shortest path, high torque, high speed and silence, the accuracy of repeatability is very good and it is able to bear heavy-cutting. It has the functions of count, parity check, locking answer signal for ensuring safety in use. The turrets are widely used in various kind of NC lathe, so that the lathe can operate for facing,turning, arcing, boring, threading, grooving and parting in once hold.
1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.
2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.
3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.
4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.
5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.
6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.
Product Parameters

Model/Data	Center height (mm)	Station number			Working pressure (Mpa)	Flow (L/min)	Repeatability accuracy(")	Time of adjacent tool changing(s)
								45º	180º
HAK36050	5	8			2～2.5	12	±2	0.4	1.5
HAK36063	63	8			3～3.5	12	±2	0.6	1.6
HAK36080	80	8			3～3.5	12	±2	0.6	1.6
HAK36080A	80	8	10	12	3.5～4	20	±2	0.8	1.8/2.2/2.5
HAK36100	100	8	10	12	3.5～4	30	±2	0.8	1.8/2.2/2.5
HAK36125	125	8	12		4～4.5	40	±2	1	2/2.8

Model/Dim	A	B	C	D	H1	H2	b	b1	b2	h	h1
HAK36063	228	185	165	148	63	228	20	11	φ15	20	10
HAK36080	240	210	190	158	80	245	20	11	φ17	20	10

Model/Dim	L	L1	L2	L3	J	K	M	N	φ1	φ2	φ3
HAK36063	443	65	38	175	19.5	30	30	30	φ272	φ316	φ25
HAK36080	473	80	37	191	22	32	32	32	φ290	φ345	φ25

Model/Dim	A	B	C	D	E	F	G	K	H1	H2	L	M
HAK36050	180	150	133	/	168	59	41	41	50	155	94	45
HAK36080A	270	215	190	330	235	80	45	45	80	227	117	80
HAK36100	300	250	220	365	272	95	45	45	100	290	133	90
HAK36125	420	310	280	360	270	125	/	/	125	325	137	103

Model/Dim	N	O	P	R	S	T	U	b	b1	b2	h	h1
HAK36050	10	300	153	20	30	30	30	16	9	15	16	10
HAK36080A	15	365	191	32	32	32	32	25	11	17	25	12
HAK36100	19	380	206	34	40	30	30	25	13	20	25	18
HAK36125	19	403	226	30	44	43	43	32	17	26	32	10

We are a manufacturer of CNC Lathe Turret. When you select a CNC Turret model, please check each parameter. Select the number of stations according to the number and complexity of the part program. Whether you’d like to get more info on what, why and how we do what we do, need help with what you’re creating, would like to partner up or just say hi!---we’d love to hear from you.
