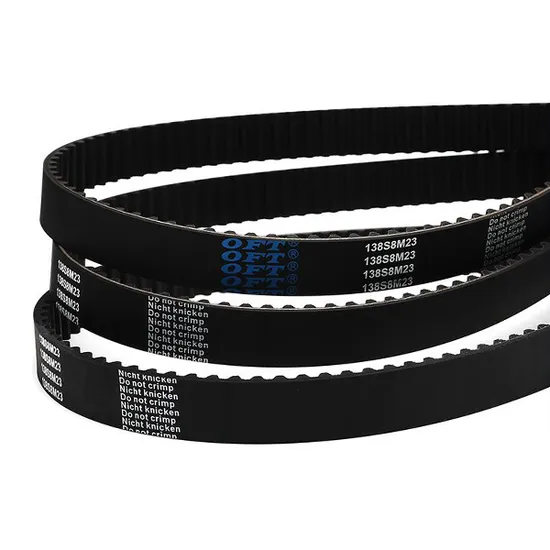

Rubber Timing Toothed Belt

Product Description

Company intruduction:
OFT is a leading manufacturer of high quality transmission belts in China with 15 years OEM & ODM experience. Founded in 2004, covers an area of 33,000 square meters. We have passed ISO 9001 audit.
Products introductions:

Type	Pb	Ht	Hs		Type	Pb	Ht	Hs
ZA	9.525	1.91	4.10		ZBS	9.525	2.80	5.10
ZB	9.525	2.29	4.50		FS8M	8.000	3.05	5.30
ZH	9.525	3.50	5.50		YU	8.000	3.11	5.20
YH	8.000	3.04	5.20		MY	8.000	3.11	5.21
ZR	9.525	3.20	5.40		MR	9.525	3.54	5.69
YS	8.000	2.95	5.20		RU	9.525	3.56	5.70
ZS	9.525	3.53	5.70		ZLB	9.525	2.70	5.05
ZAS	9.525	2.32	4.62		ZD	9.525	3.50	5.50

Property of Synchronous Belt

Test Item		Pitch type
Tension test	≥KN/25.4 mm Tension strength	MXL	XL	L	H	XH	XXH
		0.59	1.96	2.65	6.77	9.32	10.80
	≤% Elongation	4.0	4.0	4.0	4.0	4.0	4.0

Note: the elongation is under loaded-up condition's.


Loading capacity

Pitch type	MXL	XL	L	H	XH	XXH
KN/25.4mm loading	0.49	1.57	2.16	5.39	7.46	8.64

T TYPE INDUSTRIAL RUBBER SYNCHRONOUS BELTS
Arc Teeth Industrial Rubber Timing Belt
Application:
Neoprene synchronous belt widely used in the textile, automobile, chemical fiber, tobacco, paper, printing, chemical mechanical equipment; In recent years, mining and metallurgy, iron and steel machinery, medical equipment demand is growing.
Note:
1. All specification and types of timing belt can be produced.
2. For particular specification belt, we can make according to the clients drawing or sample.
3. The width of timing belts can be adjusted as clients' request.

2.1 Type Timing Belts

Features: • trapezoidal tooth timing belt will be applied for positioning driving field • high strength, good toughness, tensile • ear-resistant, oil resistant, anti-moisture (anti humidity) • long life, low-cost, no need for lubrication Materials: • Chloroprene rubber material • Fiberglass framework •Nylon canvas tooth surface Application: It is widely used in office equipment, sewing machine, automatic trading machine, agricultural machine, food processing, HVAC, Oil field, carpentry and papermaking, etc.

Type (mm) Pb (mm) Ht (mm) Hs material (mm) Standard Width Length MXL 2.032 0.51 1.14 rubber 3.0/4.8/6.4/7.9 9.5/12.7/15.7 19.1/25.4/38.1 58.0/76.2/101.6 79mm ~ 6350mm XL 5.08 1.27 2.3 L 9.525 1.91 3.6 H 12.7 2.29 4.3 XH 22.225 6.35 11.2 XXH 31.75 9.53 15.7

2.2 -Round HTD Timing Belts

Features: • The power of Round HTD tooth timing belt is enhanced 30% compared with that of trapezoidal tooth belt. • High strength, good elasticity, high tensile stress. • Oil resistant, moisture resistant, good adaptability to environment. • Lubrication-free and no need for further tension, low maintenance costs Materials: • Chloroprene rubber material • Fiberglass framework •Nylon canvas tooth surface Application: It is widely used in various areas, from household articles to heavy engineering equipment, including the data storage devices, electric tools, postal equipments, food processing, office equipments, centrifugal machine, counting machines, diagnostic medical devices, sewing machines, ticket machines, robots, automatic trading machines and vacuum cleaners, etc.

Type	(mm) Pb	(mm) Ht	(mm) Hs	material	(mm) Standard Width	Length
3M	3	1.17	2.41	rubber	6/9/10/15 20/25/30 50/55/85 115/175	87mm~ 4200mm
5M	5	2.08	3.81
8M	8	3.4	6
14M	14	6	10

2.3 STS timing belts

Features: • The power of Round STD tooth timing belt is enhanced 30% compared with that of the trapezoidal tooth belt. • High strength, good elasticity, high tensile stress. • Oil resistant, moisture proof, good adaptability to environment. • Lubrication-free and no need for further tension, low maintenance costs Materials: • Chloroprene rubber material • Fiberglass framework •Nylon canvas tooth surface Application: It is widely used in various areas, from household articles to heavy engineering equipment, including the data storage devices, electric tools, postal equipments, food processing, office equipments, centrifugal machine, counting machines, diagnostic medical devices, sewing machines, ticket machines, robots, automatic trading machines and vacuum cleaners, etc.

2.4 RPP Timing Belts

Type (mm) Pb (mm) Ht (mm) Hs Material (mm) Standard width Length 8MGT 8 3.4 5.6 rubber 20/30/40 50/55/85 115/170 384mm~ 6860mm 14MGT 14 5.82 9.91

Features:
• It features the great transmission efficiency and high price/performance ratio.
• Transmission efficiency is increased by 30% to 100%
• It features high strength, good elasticity, and high tensile stress.
• It is resistant to dirt, oil and moisture.
• It is lubrication-free and has no need for further tension, low maintenance costs
Materials:
• Chloroprene rubber material
• Fiberglass framework
•Nylon canvas tooth surface
Application: it is especially suited to the occasions where need high torque and high power transmission, including textile, printing, machine tools, food processing, transportation equipment, packing equipment, agricultural equipment, compressors, centrifugal machine, dry cleaning machines and paper making industry.
