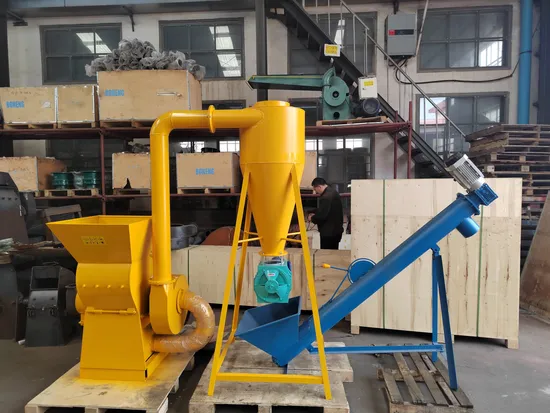

Factory Price 2024 Wood Shredder Machine with Cycone and Air-Lock

Product Description

Working principle for diesel hammer mill
The hammer mill is fixed with an engine and a power of RP-driven all kinds of different power.
After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.
Specifications for diesel hammer mill

Model	Power	Capacity	N/G weight	Packing size	Qty in 20' container
CF158	2.2kw/3kw	100-500 kg/h	75/95 kg	48*58*63 cm	140 sets
CF198A	7.5hp gasoline	200-700 kg/h	120/140 kg	96*62*105 cm	40 sets
CF198B	4kw 380v	200-700 kg/h	120/140 kg	90*58*102 cm	46 stes
CF420A	15hp diesel	500-1200 kg/h	330/360 kg	147*73*109 cm	20 sets
CF420A	22hp diesel	800-1600 kg/h	350/390 kg	147*74*111 cm	20 sets
CF420B	7.5kw 380v	500-1200 kg/h	300/320 kg	112*82*107 cm	24 sets
CF420C	11kw 380v	800-1600 kg/h	330/360 kg	113*75*108 cm	26 sets
CF500A	55hp diesel	1000-3000 kg/h	800/840 kg	149*146*121 cm	10 sets
CF500B	22kw 380v	1000-2500 kg/h	600/630 kg	124*97*106 cm	18 sets

Main Features of diesel hammer mill
1. With capacity 300-500kg/h, this crusher machine can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same crusher machine.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing.
Company information:
Laizhou Chengda Machinery Co., LTD was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufacturing and international trade business. Main products are flat die pellet mill, ring die wood pellet machine, biomass pellet machine, wood crusher, hammer mill, pellet cooler, screw conveyor etc.
Quality is our culture and we're one of the trusted supplier confirmed by Made In China. We trust that with us your money will be in safe and your business will be in safe!
