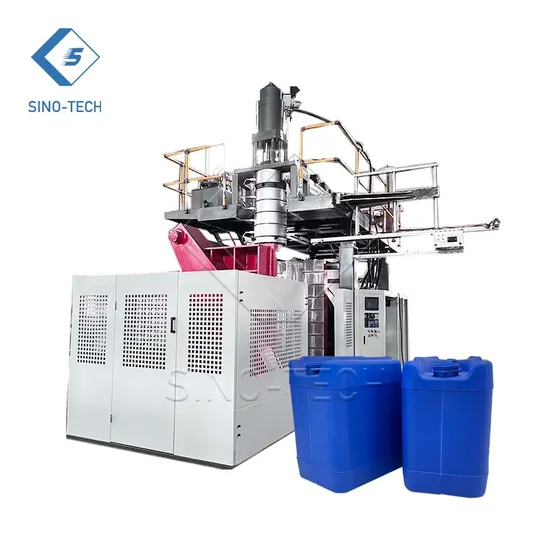

China Automatic HDPE Plastic Kettles Blow Molding Machine Extrusion Machine

Product Description

3000L Product Description
Advantages:
1. The temperature controlled by seimens PLC, the extruder stops automatically if the temperature is down because of heater or thermocouples damaged.
2. There is die head pressure testing in the diehead. The PLC shots down the extruders if the pressure inside the die head is too high.
3. The extruders have covers for keeping the temperature, so can make the heating time short
4. The temperature are controled by seimens brand.
5. The extrusion motor is seimens brand.
6. The inverter is seimens brand.
7. More protection in control system.
Product Parameters

Technical Specification
Specifications		STD-100N series	STD-120N series
Material		PE,PP,ABS	PE,PP,ABS
Max.Container Capacity	L	120	160
Output(Dry Cycle)	pc/hr	300	300
Machine Weight	T	19	22
Machine Dimension(L*W*H)	M	6.8*3.3*5.0	7.5*3.5*5.7
Clamping system
Clamping force	KN	440/880	680/1360
Platen opening stroke	mm	600-1400	600-1400
Platen size(W*H)	mm	1100*1100	1400*1600
Max.mold size(W*H)	mm	900*1400	1200*1900
Mould thickness	mm	610-750	610-750
Power
Max drive	KW	90	135
Total Power	KW	108	206
Fan power for screw	KW	0.6	0.72
Air pressure	Mpa	0.8	1
Air consumption	m³/min	0.8	1
Average energy consumption	KW	51	95
Extruder system
Screw diameter	mm	100	120
Screw L/D ratio	L/D	24	30
Melting capacity	Kg/hr	150	320
Number of heating zone	zone	5	5
Extruder heating power	KW	25	32
Extruder driving power	KW	45	90
Accumulator head
Number of heating zone	zone	5	6
Power of die heating	KW	26	39
Max. Die-pin diameter	mm	450	500
Accumulator capacity	L	12/15	20

Detailed Photos
Application

Production Process

Company Profile
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
