Big Hole Heavy Duty Pipe Threading Thread Lathe Machine Qk1313 Qk1319 Qk1322 Qk1325 Qk1327
| US$16,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QK1313 QK1319 Qk1322 QK1325 QK1327
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Bed Width
550mm
Swing Over Bed
630mm
Spindle Bore
200mm
X Axis Travel
520mm
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description

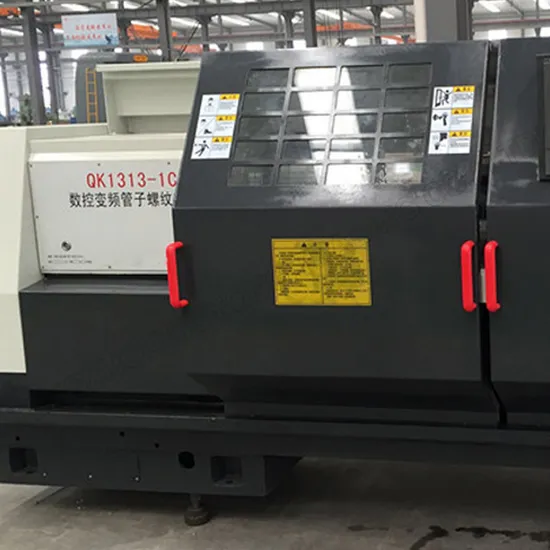

CNC PIPE THREADING LATHE FEATURES:QK13 series of CNC pipe threading lathe is mainly used for processing inner and outer pipe thread, metric thread
and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface,
conical surface and other revolution and end surface as general CNC lathes
SPECIFICATIONS:
| SPECIFICATION OF YIMAKE LATHE MACHINE | |||||
| ITEMS | UNIT | QK1313 CNC Pipe Lathe | |||
| Basic | Max. Dia. swing over bed | mm | Φ630 | ||
| Max. Dia. swing over cross slide | mm | Φ340 | |||
| Distance between centers | mm | 1500 / 3000 | |||
| Range of machining thread | mm | Φ30-126 | |||
| Width of bed way | mm | 550 | |||
| Main motor | kw | 11 (direct drive) | |||
| Coolant pump motor | kw | 0.125 | |||
| Spindle | Spindle bore | mm | Φ130 | ||
| Spindle speed (frequency conversion) | r/min | 2 steps: 30-200 / 200-600 | |||
| Tool post | Number of tool stations | -- | 4 | ||
| Size of tool section | mm | 32×32 | |||
| Feed | Z axis servo motor | kw/Nm | GSK:2.3/15 | Fanuc:2.5/20 | Siemens:2.3/15 |
| X axis servo motor | kw/Nm | GSK:1.5/10 | Fanuc:1.4/10.5 | Siemens:1.5/10 | |
| Z axis travel | mm | 1250 / 2750 | |||
| X axis travel | mm | 520 | |||
| X/Z axis rapid traverse speed | mm/min | 4000 | |||
| Number of feed and screw pitch | mm | 0.001-40 | |||
| Accuracy | Positioning accuracy | mm | 0.020 | ||
| Repositioning accuracy | mm | 0.010 | |||
| CNC system | GSK | -- | GSK980TC3/GSK980TDC | ||
| Fanuc | -- | Fanuc Oi Mate TD | |||
| Siemens | -- | Siemens 808D | |||
| Tailstock | Tailstock quill diameter | mm | Φ100 | ||
| Tailstock quill taper | mores | m5# | |||
| Tailstock quill travel | mm | 205 | |||
| Tailstock cross travel | mm | ±15 | |||
| Others | Dimension(L/W/H) | mm | 3660/5160×1360×1480 | ||
| Net weight (kg) | kg | 3800/4600 | |||
| Gross weight | kg | 4800/5600 | |||
| Accessory | Tool post | 1 set | 4 position NC turret | ||
| Chuck | 2 set | Φ400 three-jaw manual chuck | |||
| Center rest | 1 set | Φ150 | |||
| Rear support bracket | 1 set | Φ150 | |||
| Package | Standard export package | 1 set | Steel pallet iron frame and plywood box | ||
