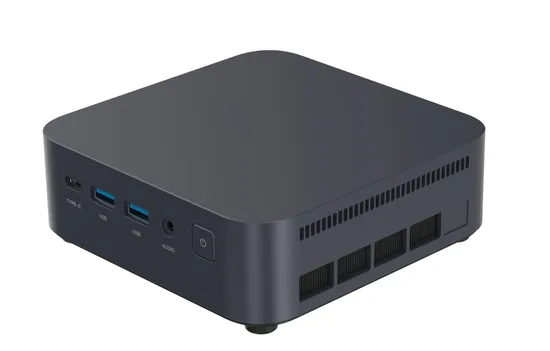

Mini PC Ad16 I5-12450h 16+512GB
| US$110.00-120.00 | 20 Pieces (MOQ) |
Basic Info.
Model NO.
AD16
Operating System
Windows 10
Ports
Ethernet
Storage Type
SSD
Transport Package
Color Box
Specification
675*458*275mm
Trademark
Wecent
Origin
China
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description
| Product Appearance | |||||||
| Type | Spec. | Standard Configuration | Optional | ||||
| Product | Product Type | MINI PC, Ad Terminal Box | |||||
| Dimension | 128mm*128mm*51.5mm | ||||||
| Case Material | Plastic | ||||||
| Weight | Net Weight 386g,Gross Weight 757g | ||||||
| System Hardware Configuration | |||||||
| Type | Spec. | Description | Optional | ||||
| CPU | Model | J3455 J4205 | |||||
| Speed | 1.5GHz ( J3455) 1.5GHz ( J4205) | ||||||
| Max. Turbo Speed | 2.3GHz ( J3455) 2.6 GHz ( J4205) | ||||||
| Power Consumption | 10W | ||||||
| Memory | Model | LPDDR3/LPDDR4 | |||||
| Capacity | 2x LPDDR3/LPDDR4 Max 12GB on Board | ||||||
| Storage | EMMC | eMMC Max 128GB | |||||
| SSD | Optional,mSATA Or SSD,Max 512GB | ||||||
| 2.5'' SSD | Optional,2.5 SATA Port,Max 2TB | ||||||
| TF Card | Standard TF Slot,Max to 128GB | ||||||
| RTC | BIOS | Real-time Clock, Time Boot | |||||
| Auto Power On | BIOS | Support auto power on after electrified | |||||
| Diskless Network | BIOS | Support uefi/Legacy Diskless Switch On | |||||
| TPM | CPU integratesTPM | Support TPM 2.0 | |||||
| Two screen output | Video Output | Support HDMI1+HDMI2 two screens at the same time under the system | |||||
| LED | State | Green light- Swith on Red light- Switch off | |||||
| Internet Connection | |||||||
| Type | Spec. | Description | Optional | ||||
| WIFI | Model | intel 7265/ 3165/ RTL8821CE On Board | |||||
| Protocol | IEEE 802.11 a, b/g, n, ac | ||||||
| Bluetooth | Model | intel 7265/ 3165/ RTL8821CE On Board | |||||
| Protocol | Support Bluetooth 4.2 | ||||||
| 3G | Built-in | No | |||||
| 4G | Built-in | No | |||||
| Ethernet | LAN1 | 10M/100M/1000M Self-adaption | |||||
| I/O | |||||||
| Type | Spec. | Description | Optional | ||||
| USB | USB2.0 | USB2.0 Type-A*2 | |||||
| USB | USB3.0 | USB3.0 Type-A*2 | |||||
| TF | Expansion Memory | TF*1 | |||||
| HDMI | AV Output | HDMI 1.4b Type A x2 | |||||
| VGA | Video Output | No | |||||
| RJ45 | Gigabyte Ethernet | RJ45 x1 | |||||
| Uart | Data Transmission | No | |||||
| POWER | Power Button | x1 | |||||
| DC IN | Power Supply Input | 5.5/2.1mm DC Jack x1 | |||||
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 (Two-in-one interface) | |||||
| Antenna1 | FPC Antenna | WiFi 2.4+BT x1 | |||||
| Antenna2 | FPC Antenna | WIFI 5.0 | |||||
| SIM | Micro SIM | No Supporting | |||||
| Software Configuration | |||||||
| Type | Spec. | Description | Optional | ||||
| OS | Version | Win10 Home/Win10 pro/Win10 IOT/ Ubuntu | |||||
| Environment | |||||||
| Type | Spec. | Description | Optional | ||||
| Environment | Working Temperature | 0~40ºC | |||||
| Memory Temperature | -20~60ºC | ||||||
| Humidity | 90% @ 40 °C (No Condensation) | ||||||
| Accessory | |||||||
| Type | Spec. | Description | Optional | ||||
| Power Supply | Vesa | Input 100~240V 50/60Hz Output12V/2.5A DC 5.5*2.1mm | |||||
| IR Remote Control | No Supporting | ||||||
