Zoomlion Electric Durable 7000 Liters Water Tank Truck Sprayer with Water Fog Canon for Anti-Dust

Product Description

Please note!
The pictures shown as below are new, if you would like a used same model for cheaper price, please contact us for details!
Used Zoomlion 100M Fog Cannon Electric Jiefang 18000KG Multi-functional Dust Suppression Vehicle Water Truck 5181

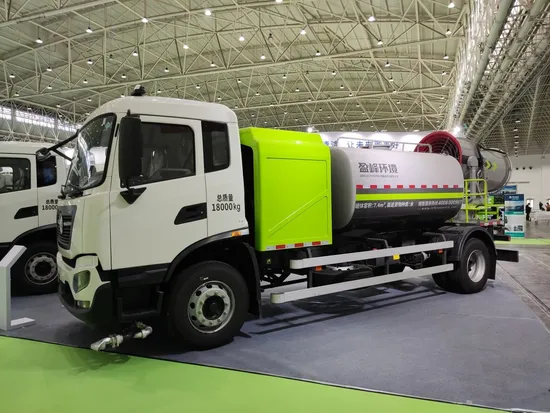

ZBH5181TDYDFBEV pure electric multi-functional dust suppression vehicle is modified by Dongfeng Commercial EQ1180GEVJ1 Class II vehicle chassis, adding special operating devices and control systems. It has many functions such as green spraying, spray dust removal, low pressure washing, green watering and so on.
Used Zoomlion 100M Fog Cannon Electric Jiefang 18000KG Multi-functional Dust Suppression Vehicle Water Truck 5181 has various functions, beautiful appearance, high efficiency, environmental protection and reliable superior performance. Product DescriptionFunctional profile
The product can achieve a variety of functions such as spray dust suppression and cleaning. The spray system has strong wind, good atomization effect and wide coverage. The low pressure cleaning system is equipped with front duckbill washing, middle conical nozzle washing, post watering, post afforestation watering and post working water cannon.
Scope of application
The spray function is suitable for dust removal in the open air powder material storage yard, construction site, house demolition and renovation site, site leveling and other places. The cleaning function is suitable for urban road environmental dust removal, billboard cleaning and highway green belt watering operations.
Product Parameters

Item			unit	Parameters
Announcement Parameters	Vehicle mass		kg	9160
	Maximum Gross Mass		kg	18000
	Rated load mass		kg	7060
	Overall dimensions (L×W×H)		mm	9295(Standard),9325×2520×3200
	Minimum Ground Clearance		mm	240
	Approach/Departure Angle		°	12-14
	Spraying Systems	Maximum effective spraying range	m	≥100
		Spray height	m	≥35
		Spray flow rate	L/min	≥100
		Atomization particle size	μm	50~150
		Rated pressure of water pump	MPa	1.1
		Spray pitch angle	°	-10~60
		Spray rotation angle	°	-90~90
	Cleaning Systems	Duckbill flushing width	m	≥10
		Cone flushing width	m	≥24
		Rear sprinkler width	m	≥14
		Rear green spraying width	m	≥14
		Water gun range	m	≥50
Chassis parameters	Chassis Model/Class/Manufacturer			EQ1180GEVJ1 /Pure Electric Class II Chassis/Dongfeng Commercial Vehicle Co.
	Chassis motor model			TZ370XS-LKM1103
	Rated power of motor		kW/(r/min)	80/1270
	Wheelbase		mm	5300
	Maximum speed		km/h	89
	Minimum turning diameter		m	20
Top-mounted motor	Water pump motor model / rated power			TZ210XS-40-03/40kW
	Model/rated power of air blower motor			TZ260-40-01/40kW

Detailed Photos
The main advantages of the product
1. Superior performance
A pitcher. Using finite element analysis, lightweight is achieved on the basis of reliable structural strength; Standard imported brand paint, anti-corrosion effect is good. A low water level alarm is set to avoid damage to the pump due to no water transport.
The spray system. The new design of "bullet-type airfoil guide low-noise impeller wind gun", the combination of bullet-type guide cone and arc guide plate ensures the efficient conversion of air flow in the duct, reducing energy loss and energy consumption.
The fan speed is divided into "standard" and "strong" modes to meet the needs of different spray distances.
2. Good quality
High accessory configuration. The main parts use well-known brands, excellent quality and high reliability. The chassis adopts the electric vehicle chassis produced by Dongfeng Commercial Automobile Co., LTD. The motor, controller, hydraulic pump and main oil hose are all made of well-known brand products.
3. Safe and reliable
Equipped with multiple safety protection devices and alarm system, each sensor real-time monitoring of the top working conditions: water tank water level, top motor speed, centralized display of information on the display screen, fault warning; The camera head and the color display in the cab allow the operator to monitor the installation of the wind cannon in real time to avoid collisions. Through warning lights, safety labels, work music and other multiple ways to remind pedestrians to pay attention to avoid.
4. Multiple functions
While equipped with a high-performance spray system, the vehicle is also equipped with a full range of low-pressure cleaning functions, including duck bill flushing, conical nozzle hedging, rear sprinkler nozzle, green sprinkler nozzle, water gun.
5. Easy maintenance
All kinds of water ball valves, air valves, hydraulic valves, solenoid valves, etc. are arranged in the position of convenient operation and maintenance.
FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
