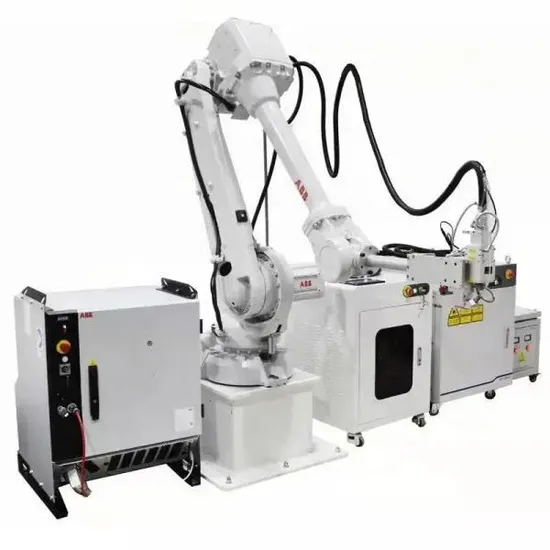

Premium Laser Hardening Machine for Precision Mold Treatment
Basic Info.
Model NO.
SL-A022
Automatic Grade
Automatic
Style
Stationary
Technical Class
Continuous Wave Laser
Q-Switch
with Q-Switch
Laser Classification
Fiber Laser
Type
Laser Hardening
Power
3000W/6000W/12000W/Customized
Refrigerated Dryer
10HP, 1.5m3
Transport Package
Plywood Case
Specification
2450*2450*2500CM
Trademark
Sunrise
Origin
China
HS Code
8479819000
Production Capacity
100 Sets Per Month
Product Description
What is Laser Hardening?Hot Sale Laser Metal Surface Heat Treatment High Accuracy Mold Laser Hardening Machine
Laser hardening is the use of laser to heat the surface of the material above the phase transition point, as the material itself cools, austenite into martensite, so that the surface hardening of the material quenching technology.
It is widely used in the surface treatment of cutting tools, molds, engine pistons, crankshafts, transmission gears, turbochargers, bearings, propellers, metal pipes, valves, etc. to improve their wear resistance, corrosion resistance and service life.
Main Components
Product Paramenters
| Item | Spec. | Description | Qty. |
| Laser | 2000W | Laser power: 10~1500W continuously adjustable. | 1 set |
| Fiber system | 600μm | Core diameter 600 m, length 15m | 1 set |
| Laser collimating head | TS-Q100 | Collimating focal length: 100mm, focusing focal length: 300mm | 1 set |
| Laser focusing module | TS-301P300 | Ensure speckle effect and heat treatment consistency | 1 set |
| Multi-station four-axis system | TS-Q_SYS-4-900 | Professional laser CNC system, equipped with industrial control computer, to achieve XYZ moving, stroke X: 500mm, Y: 400mm, Z:300mm (the specific stroke is determined according to the workpiece);Positioning accuracy: ≤±0.035mm Repeat positioning accuracy: ≤±0.01mm. Axis A and XYZ form A four-axis linkage. | 1 set |
| Smoke purification system | Standard | Implement smoking and dust removal in work area (prevent pollution) | 1 set |
| Refrigerated dryer | 10HP,1.5M3 | Filter and dry compressed air | 1 set |
| Fixture | Customized | 1 set |
