Quick Pitch Control Gasoline Walk-Behind Power Trowel Gyp-436new

Product Description

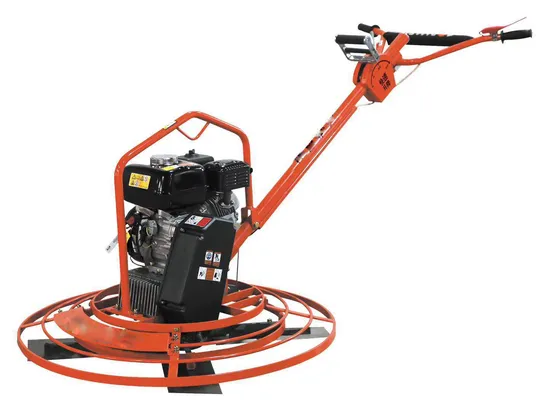

Quick pitch control gasoline walk-behind power trowel GYP-436new
A power trowel (also known as a "power float", "helicopter" or "trowel machine" or "whirlybird") is a piece of light construction equipment used by construction companies and contractors, to apply a smooth finish to concrete slabs
There're ride on power trowel and walk behind power trowel.
Lifting tube as standard feature allows trowel to be transported on the job-site with only two people.
Option:Lifting Hook,Throttle Control,Long Handle,Trolley Wheel
Features and Advantages:
1.Fast pitch control for easy adjustment with the push or pull of one lever
2.Over-built cast aluminum gearbox assures long service life
3.Heavy-weight design to assure a superior finish
4.Heavy-duty bronze worm gear for extra long-life
5.Perfectly balanced design for easy and comfortable operation
6.Height adjustable handle,assures operator comfort&easy control
7.Lifting tube as standard feature allows trowels to be transported on the job-site with only two people
8.Dead-man switch,shuts the engine down in the event of the operator loosing control of the unit
9.Safety designed guard ring assures the safety for the people
10.Stabilizer ring reduces blade chatter
11.Optional blude blade is with stronger material than standard blades and combined with its ability of flex slightly,performance is improved and blade life prolonged
12.Optional plastic blade leaves no burnish marks on the floor
Specification

Model	GYP-436-1	GYP-436-2	GYP-436-3
Engine Type	Chinese Petrol Engine	Robin EX17	Honda GX200
Power KW(hp)	4.8(6.5)	4.2(5.7)	4.8(6.5)
Weight Kg(lbs)	81(178)	80(176)	80(176)
Blade Speed RPM	70-150
Rotor Dia CM(in)	92(36)

We offer a complete line of finishing blade, combination blade, super-blue blade, plastic blade and float pan for edge, walk-behind or ride-on power trowel. All blades can fit most other brands of power trowels.

Specifications:

Standard	Super-blue	Plastic	Thickness mm	Dimension	Correspondent to
GFB061016	/	/	1.6	6"*10.5"	GYP-830 series
GFB061020	SFB061020	/	2.0
GFB061416	/	/	1.6	6"*14"	GYP-836 /436 series
GFB061420	SFB061420	/	2.0
GFB061616	/	/	1.6	6"*16"	GYP-442/846 series
GFB061620	SFB061620	/	2.0
GFB061816	/	/	1.6	6"*18"	GYP-446/848/1046 series
GFB061820	SFB061820	/	2.0

Applications :
power trowels are used to create a smooth surface after wet concrete has been vibrated with a poker and leveled with a leveling beam. They are ideal for concrete slabs, industrial warehouse floors, residential housing, parking lots and alleys - or anywhere concrete slabs are poured.
