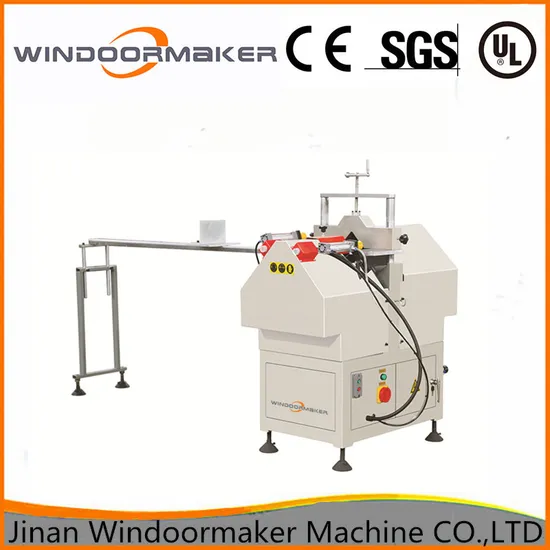

PVC Cutting Machine UPVC Window Making Machine V Cutting Machine
| US$1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WMCV-60
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
not CNC
Voltage
380V
Machine Name
UPVC Window Making Machine V Cutting Machine
Model
Wmcv-60
Motor Power
2.2kw
Cutting Length
300-1600mm
Cutting Angle
45
Cutting Width
120mm
Cutting Height
20-60mm
Transport Package
Wood Package
Specification
1800mmx1380mmx1300mm
Trademark
windoormaker
Origin
China
HS Code
847780000
Product Description
Product DescriptionSpecification:
1. Automatic V-cutting of UPVC Window profile
2. Two hand safety operation
3. Pneumatic clamping
4. Adjustable V-notch depth based on different profile.
5. Adjustable feeding speed.
6. Automatic shaping of one pair of saw is cut
7. Two saw blade on two separate motor fixed at 45 degree without cross
Technical Parameter:
| Air Pressure: | 0.5MPa~0.8MPa |
| Air Consumption: | 30L/min |
| Input Voltage: | 380V 50Hz |
| Input Power: | 2.2KW |
| Spindle Rotary Speed: | 2800r/min |
| Saw Blade Specification: | φ300mmx3.2mmxφ30mm |
| Max. Cutting Length: | 300-1600mm |
| Cutting Height: | 20mm~60mm |
| Cutting Width | 120mm |
| Overall Dimension: | 1800mmx1380mmx1300mm |
| Weight: | 200kg |
Certifications
Company Profile
Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.
Machine at old customer
Packaging & Shipping
