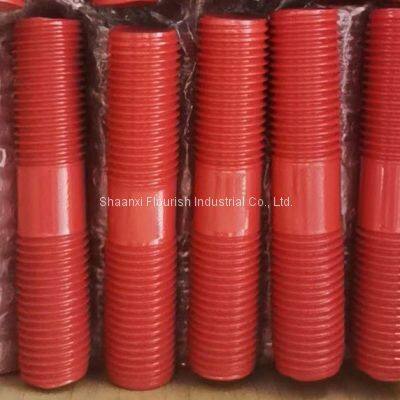

PTFE Double Ended Bolt / Carbon Steel Stud Bolts UNC Thread

Product Details

Product Description

Product Description
Name:Material:Standard:Finish:Thread:Colour:High Light:

Stud Bolt	Carbon Steel
ANSI/ASME，GB	PTFE / Teflon Coating
UNC	Red
PTFE Double Ended Bolt, UNC Thread Stud Bolts, Carbon Steel Double Ended Bolt B8

ASME/ANSI B18.31.2 Continuous Thread Studs Coarse Teeth / Staninless Steel ASTM A193 B8 Stud Bolts
Teflon-coated bolts have the following advantages:
1. Non-stick: almost all substances are not bonded to the Teflon coating. Very thin films also show good non-stick properties.
2. Heat resistance: Teflon coating has excellent heat resistance and low temperature resistance. It can withstand high temperature up to 300 °C in a short time, and can be used continuously between 240 °C and 260 °C. It has significant thermal stability. It can work at freezing temperatures without embrittlement and does not melt at high temperatures.
3. Sliding: Teflon coating has a low coefficient of friction. The coefficient of friction changes when the load slides, but the value is only between 0.05-0.15.
4. Moisture resistance: The surface of the Teflon coating does not touch water and oil, and it is not easy to touch the solution during production operations. If there is a small amount of dirt, it can be removed by simply wiping. Short downtime saves man-hours and increases productivity.
5. Wear resistance: under high load, it has excellent wear resistance. Under a certain load, it has the dual advantages of wear resistance and non-adhesion.
6. Corrosion resistance: Teflon is hardly corroded by chemicals and can protect parts from any kind of chemical corrosion. Teflon is widely used in industries with high temperature resistance and high cleanliness.

Standard	ANSI/ASME, DIN,GB
Size	Standard & non-standard, customized
Material	Carbon Steel
Grade	Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9
Thread	UNC
Finish	PTFE coating
Trade Term	FOB/CIF/CFR/CNF/EXW/DAP
Payment	T/T, L/C , Western Union
