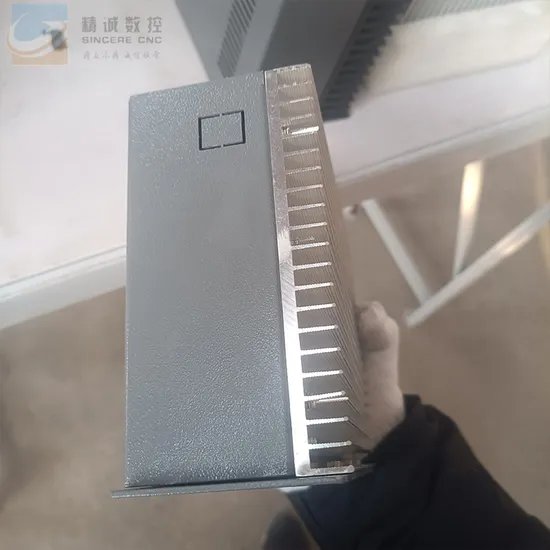

Servo Drive Ds100-3A for CNC Equipment

Product Description

Model: JCK4050
System available: FANUC, SIEMENS, GSK, KND,MLT, HCN etc.
Double spindle
2-axis function
Max machining diameter: 500mm
Mechanical spindle
Features
*Each axis equipped with imported high-precision linear guide,ball screws and precise bearings. * Using synchronous guide bush structure,realize high-speed and high-precision machining. * With guide bush or without guide bush switching flexiblely to meet different needs of processing. * Key components with gas sealing structure, oil and slag prevention, improving service life and stability. * Select high torque motor, high rigidity and high strength slipway for each axis and tool holder to meet the requirements of large cutting volume and high efficiency. * High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.
* Available with ER20 tools to increase the machining range.

Name	Unit	JCK4050
Maximum rotary diameter of machine bed	mm	500
Maximum rotary diameter of machine pallet	mm	440
Max workpiece length	mm	450
Spindle bore and nose		A2-6
CNC control system		GSK 980series(reference)
X/Z servo motor		GSK 15N*M
Drive		GSK
Spindle chuck type		Hydraulic chucks
Chuck Size	inch	10
Spindle through-hole diameter	mm	66
Maximum bar passing diameter	mm	50
Frequency converters		Hpmont(7.5KW:HD3M - 4T07G)
Maximum spindle speed	r/min	3000
Number of spindle speed stagcs		Servo Continuously Variable Speed
Electric knife holder		Yaxing.Hongda
Type of tool holder		12-station turret or row of knives
X-axis travel	mm	250
Z-axis travel	mm	500
X - direction lead screw	mm	HJG - 3210
Z - direction lead screw	mm	HJG - 4012
X-axis rapid traverse speed	m/min	5
Z-axis rapid traverse speed	m/min	5
Machine Size	mm	2697*1795*1860
Machine weight		3600kg

Shandong Weifang SINCERE CNC Machine Tool Co., Ltd. is located in the famous kite city of the world - Weifang City, founded in the spring of 2003. Its products are of excellent quality, leading technology, reasonable price and considerate service; The company for production, sales, service has many years of practical experience, is a professional machine tool numerical control industry pilot enterprise in Shandong province. Since its establishment, relying on the "quality assurance, integrity-based, continuous innovation, the pursuit of excellence" business philosophy and perfect service system, the company has rapidly developed into a well-known set of production, sales, service as one of the professional CNC equipment production enterprises; And take social responsibility as its own responsibility, the "integrity, good, innovation" as the constant pursuit and goal, sincere people are willing to work with the majority of friends to create a better tomorrow!
Our Advantages
1.High quality/Reliable/Robust machines2.Service and support are top priorities3.Quickly response 7/244.Customized Machine According to Customer's Requirements5.Integrated solution provider6.More details please contact us, or send your drawings for professional recommendations
After Sales Service
Service
Service and support are a top priority. Our engineers and after sales team are trained to provide uncompromising customer service and support.
Training policy
Pre-training is available at our factory freely for our clients, video or remote training can also be provided. We charge for local training on the basis of travel expense + man day.
Warranty policy
Warranty period: 12-month. It is free of charge if it is damaged under normal use during warranty period. If the equipment is damaged due to improper operation, we charge material fees within one year. After one year, it will charge material fees and Labor costs.
Installation and commissioning
The installation and commissioning process of CNC lathe includes the following steps:
Machine tool in place: place the machine tool in the predetermined position, make sure the foundation is level and the machine tool is horizontal.
Appearance inspection before energizing: Check whether the machine tool electrical appliances, such as relays, contactors, fuses, servo motor speed, etc., are loose, and the connectors with locking mechanism should be locked. Also check the appearance and structure of the machine tool to make sure there are no damaged or missing parts.
Power on test run: according to the requirements of the manual, carry out power on test run. Observe the CRT display until a normal screen appears.
Functional debugging: Verify the normal operation of each functional part of the machine tool, such as spindle, feed axis, tool magazine, lubrication system, etc.
Precision debugging: carry out precision debugging of the machine tool, including geometric accuracy, positioning accuracy and repeat positioning accuracy.
Parameter setting: according to the requirements of workpiece machining, set the machine parameters, such as tool compensation, coordinate system setting, etc.
Empty running test: Under the automatic running mode, carry out empty running test for the machine tool to check the operation of each component.
Load test: Under automatic operation mode, carry out load test to check the running performance of the machine tool under load condition.
Acceptance and delivery: After the machine is commissioned and qualified, acceptance and delivery will be carried out, and the necessary operation and maintenance training will be provided.
During the whole installation and commissioning process, pay attention to safety, comply with the operating procedures to ensure the safety of the machine tool and personal safety. At the same time, operate in strict accordance with the instructions and technical requirements provided by the machine tool manufacturer to ensure the normal operation and service life of the machine tool. Other
