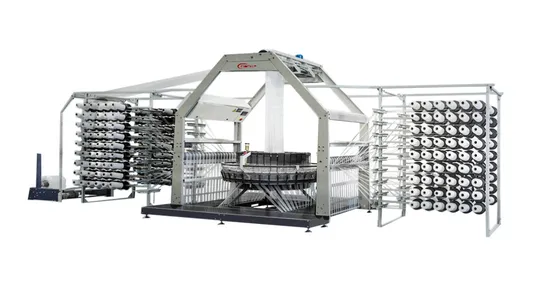

Good Quality Energy Saving Six Shuttle Circular Loom for Making PP Plastic Cement Bag

Product Description

Machine partsBrand: NanyiWith the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.
Machine partsBrand: NanyiWith the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.
Machine parts
Brand: Nanyi
PLC centralized control is adopted for electric controlling, frequnency speed regulation is adopted as well, which is convenient and stable.
PP Woven Bag Weaving Machine Six Shuttle Circular Loom:
Six Shuttle Circular Loom > NY-SBY-850/6
This serious of circular loom is latest plane cam struture,weaving the cylinder or flat cloth with PP and HDPE flat yarns.
• Latest plane cam structure -adopt idler wheel from shuttle, non-lubrication
• The brown belt made of high-strength and high-toughness material, with brown silk, runs smoothly and has low noise.
• Complete weft and weft automatic detection system
• Man-machine interface centralized control, easy to operate

Model No.	NY-SBY-850/6
Shuttle Quantity	6
Folded Cloth Width	300-850
Max Number Warp (pcs)	720
Max Diameter of Warp Bobbin	110mm
Max Diameter of Weft Bobbin	110mm
Rotational Speed of Main Motor	90-180 R/Min
Bobin Size (ID*L)	Φ38*230mm/Φ35*218mm
Power of Main Motor (kw)	3
Power of lift-up Motor (kw)	0.37
Winder Motor	1.6 Nm
Max Winder Diameter	1500mm
Installing dimensions(L*W*H)	10.5*2.8*3.2 m
Approxi.Weight(kg)	2000

Company Display


Application

FAQ & contact us
1. Are you trading company or manufacturer? A: We are manufacturer.
2. What certificate do you have?
A: We have ISO9001, SGS, CE certificate.
3. What's the main market of your company?
A: we have customers all over the world.
4. What can you buy from us?
A: Plastic Tape Extrusion Line,Circular Loom,Automatic Cutting and Sewing Machine,Laminating Machine and Printing Machine.
5. How long is your machine's warranty period?
A: All our machine have one year guarantee.
6. How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
7. What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
8. Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
9. How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finished installation, if any problems, you can contact our sales at anytime. Our engineer will take the solution video according to your description.
10. Where is your factory located? How can we visit there?
A: Our factory located in Chuiyang Industrial Zone, Aojiang town, Wenzhou City, Zhejiang, China
You can by air to Wenzhou Airport and by High-speed rain to pingyang Station.
We are welcome all friends to visit us for future cooperation!
