Wd600 Wd600g Tapping of Drilling and Milling Center Price

Product Description

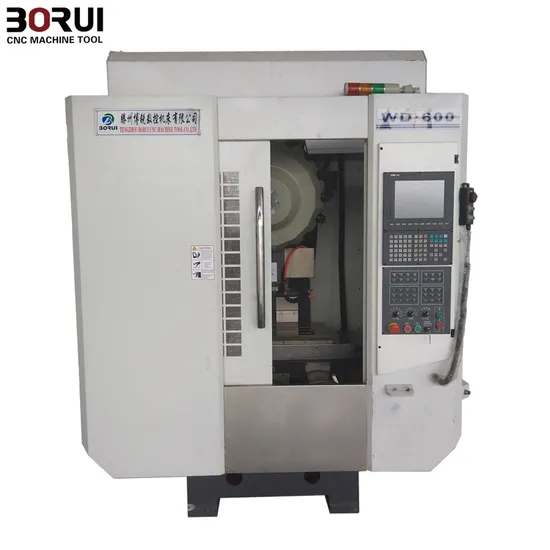

WD600 WD600G Tapping of drilling and milling center price

Product Application wd-600is designed as a high speed drilling and tapping process center,which is widely applied in various industries like,mechanic,parts,injection molds,casting steel molds and communication products,it is suitable for machining 2D/3D concave&convex models and molds cavities with complex shape of all kinds,is alsothe ideal machining equipment for massive production of screw holes in the workshop of those electronics, hardwares,mold manufacturers.
Tough and durable MEEHANITE castings deliver exceptional cutting stability and consistent accuracy - the massive,rigid internally ribbed construction reduces damping effect for superb part finishing.
The main specification :

specifications	unit	DW600	DW6G
Table size	mm	720x420	900x400
T slot(number-width-pitch)	mm	3-14-100	3-14-125
Max.table load	kg	200	450
Guide rail type		3 axis linear rail	3 axis linear rail
X/Y/Z axis travel	mm	600X400X300	650X400X500
Distance between spindle nose and worktable surface	mm	130-530	150-650
Distance between spindle center and column surface	mm	480	496
Spindle taper		BT30	BT40
Spindle speed	rpm	1-10000	60-10000
Spindle drive		direct	direct
Spindle motor	kw	3.7/5.5	3.7/5.5
X/Y/Z max.rapid traverse	m/min	48/48/60	20
X/Y/Z axis cutting feed rate	m/min	10	10
Magazine type		clamp arm type knife library	clamp arm type knife library
Magazine capacity		BT30-14T	BT40-12T
Max.tool length	mm	80	200
Max.tool weight	kg	3.5	3
Electricity supply required	KVA	15	20
Air pressure required	Kg/cm2	5-7	5-7
Positioning accuracy	mm	+/-0.01	+/-0.012
Repositioning accuracy	mm	+/-0.005	+/-0.008
Machine dimension	mm	1740X2750X2550	2060X2580X2450
Machine weight	t	2.6	3.8

Standard accessories :
Turret tool magazine
Automatic lubrication system
Cooling system
Full splash guard
Pneumatic system
Stainless steel protection draw plate
Lighting system
System:Fanuc 0i Mate control system
Three color alarm lamp
Fixed bolt
Adjustable sizing block
Optional accessories :
Air condition
Cool-heat exchanger
Workpiece inspection
Tool detection
Forth axis
Rapid feed :48/48/48m/min

The main Features:
Tool change time is only 1.3 seconds
Widen the base
Taiwan 14T flying saucer servo magazine
Taiwan linear ball screw guide and spindle unit
Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
