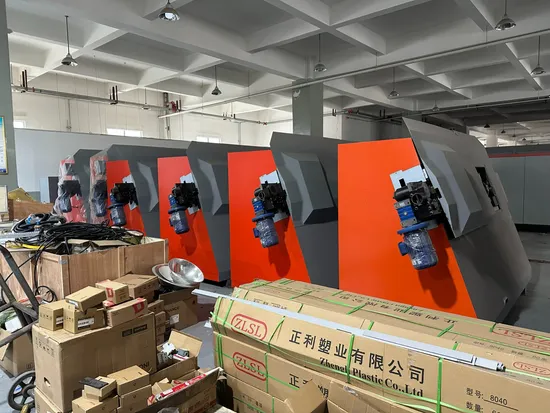

Factory Price Highly Efficiency Intelligent Wireless Remote Control Hoop Bending Machine with ISO Certificate
| US$4,000.00-40,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YT-10
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Hoop Bending Machine
Transport Package
Container
Specification
3000*1500*2000
Trademark
Beest
Origin
China
HS Code
84622990
Production Capacity
50000ton/Year
Product Description
Product introduction1.Wireless remote control, convenient and safe operation, equipped with automatic feeding and wire feeding mechanism.
2.The curved steel bar straightening mechanism can prevent the threaded steel from axial torsion, double-line feeding, and single-line independent straightening, which can realize independent straightening without stopping the machine.
3.Servo control bending and wire feeding, can work 24 hours without interruption.
4.Intelligent fault identification, centralized oil supply and lubrication, prolong service life.
5.Human-machine interface interactive operation.
6.Cut off the support block, cut off the knife arm, made of special materials, effectively improve the service life.
| YT-12 CNC Automatic Hoop Bending Machine | |||
| Model | YT-12 | Angle tolerance | ±1° |
| Single strand diameter(mm) | Φ6-Φ12 | Elbow move up and down | with |
| Double strand diameter(mm) | Φ6-Φ10 | Production capacity(single strand) | 750pcs/h |
| Bending angle | 1°-180° | Product capacity(double strand) | 1500pcs/h |
| Max pulling speed | 150m/min | Rated power | 20kw |
| Length tolerance | ±1mm | Equipment dimension(mm) | 3000×1500×2000 |
| Straightening system | S Arc Straightening system(our patented product) | Equipment weight | 1700KG |
| YT-10 CNC Automatic Hoop Bending Machine | |||
| Model | YT-10 | Angle tolerance | ±1° |
| Single strand diameter(mm) | Φ5-Φ10 | Elbow move up and down | with |
| Double strand diameter(mm) | Φ5-Φ8 | Production capacity(single strand) | 950pcs/h |
| Bending angle | 1°-180° | Product capacity(double strand) | 1900pcs/h |
| Max pulling speed | 160m/min | Rated frequency | 14kw |
| Length tolerance | ±1mm | Equipment dimension(mm) | 3032×1150×1780 |
| Straightening system | Linear straightening system | Equipment weight | 1700KG |
