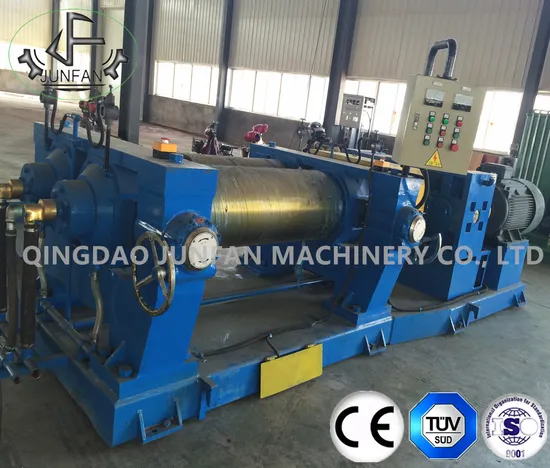

Professional Manufacturer Auto Thin Oil Lubracation Type Rubber Mixing Mill

Product Description

Professional Manufacturer Auto Thin Oil Lubracation Type Rubber Mixing Mill
Mixing Machine Application
Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials.
The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.
Machine specification
1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.
2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.
4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.
6. Stand Frame & Apron: Heavy Duty Steel Casting.
7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.
8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.
9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
>>MAIN TECHNICAL SPECIFICATION

Model	Roller (mm)	Front Linear Speed(m/min)	Friction Ratio	Motor Power(kw)	Overall Dimension(mm)
XK-160	φ160x320	8.95	1:1.37	5.5	1500x750x1500
XK-230	φ230x600	10.21	1:1.19	15	2800×1200×1120
XK-250	φ250x620	14.1	1:1.17	18.5	3400×1500×1650
XK-300	φ300x750	15.1	1:1.25	22	3500×1600×1700
XK-360	φ360x900	16.25	1:1.25	30	3780×1850×1750
XK-400	φ400x1000	18.65	1:1.27	37	4350×1850×1785
XK-450	φ450x1200	24.26	1:1.27	55	5200×2380×1840
XK-560	φ560x1530 φ510x1530	27.72	1:1.2	90	5845×2284×1978
XK-550B	φ550x1500	27.94	1:1.22	110	5870×2475×2045
XK-610	φ610x2000	28.42	1:1.17	160	7070×2290×1840
XK-660	φ660x2130	28.6	1:1.24	245	7465×3662×2080
XK-710	φ710x2200	30	1:1.09	280	7500×3500×1800

>> Company Information
1. 30 years on rubber machinery manufacturing and exporting.2. Delivery within 30 days.3. Safety wood or plywood crates packaging.4. Full transportation insurance.5. Sell to 126 countries on 6 continents. Qingdao Junfan Machinery Co., Ltd. is a high-tech enterprise specializing in the production of rubber machinery. The company is located in Qingdao West Coast New District, adjacent to Qingdao Economic and Technological Development Zone, close to Qingdao Qianwan Port and International Airport Liuting Airport, with a superior geographical environment.
Our company has an experienced technical team, energetic management personnel, serious and practical grassroots employees, advanced CNC machine tool processing centers and various large, medium and small mechanical processing equipment, heat treatment equipment and sophisticated testing instruments.
>> LAB MACHINESWe had a lot of cooperation with East China University of Technology State Key Laboratory of Chemical Engineering, Qingdao university,Beijing chemical industry research institute ect. and supply the lab rubber machines. >>MACHINE LISTOur company specially manufacturring rubber mixing mill, rubber vulcanizing press( frame type, four column type and lab press), rubber kneader and tire recycling line.
>> AFTER SERVICES FOR THE PRESS1. The above machines are all passed inspection of 3~5 hours of full load operation before leaving the factory, you can use it directly thus saving the time of test-run and expense.
2. Warranty: 12 months after installation, if our machines have any problems, you can feel free contact me, we will solve it as soon as possible, and give you the best services.
Delivery Demonstration
Some Exhibition Picture COMPANY CERTIFICATE
>>FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6.How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.
