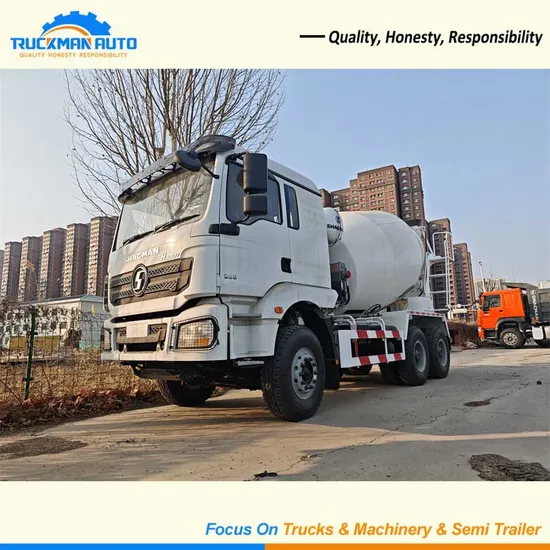

Brand New Construction Trucks 10m3 SHACMAN H3000 6X4 Concrete Mixer Truck

Product Description

Product Description
SHACMAN H3000 Concrete Mixer Truck Product Introduction
SHACMAN H3000 concrete mixer truck is a supporting equipment specialized in transporting commercial concrete produced by concrete plants, which is indispensable for the construction of highways, airports, water conservancy projects and large-scale construction projects. The driver's seat in the cab is equipped with optional air suspension, which can play the role of shock absorption, protect the driver's waist and reduce the fatigue of driving.

SHACMAN H3000 Concrete Mixer Truck Parameters

Engine
Model	WP10.300E22, 300HP
Emission Standards	Euro 2
Maximum Output	300HP (220Kw) at 1900rpm
Maximum Torque	1400Nm at 1400-1600rpm
Cabin
Model	H3000 model cab, with one sleeper, A/C
Others	Four full floating suspension + suspension device
Gearbox
Model	10JSD180, 10F/2R manual gearbox
Ratio	14.284, 10.623, 7.871, 5.876, 4.375, 3.265, 2.428, 1.799, 1.343, 1.00, 13.913 (R1), 3.18 (R2)
Drive Axle
Model	16T MAN, 2x16000kg
Speed Ratio	4.803
Tire
Model	12.00R20, 10+1pcs; Radial model
Pattern	TR668
Ply Rating	18PR
Tanker Body
Volume	10m³
Materials	Q235 Carbon steel
Fuel Tank
Volume	400L
Materials	Aluminum alloy
Others
Color	Optional
Overall Dimension	9040x2496x3850mm

SHACMAN H3000 Concrete Mixer Truck Three Core Components
The three core components of SHACMAN H3000 concrete mixer truck are reducer, hydraulic pump and hydraulic motor. The reducer is mainly used to reduce the rotational speed and increase the torque to ensure the stable operation of the mixing shaft; the hydraulic pump is responsible for converting the mechanical energy of the engine into hydraulic energy, which provides the necessary power for the whole system; the hydraulic motor is the key component to convert the hydraulic energy to mechanical energy to drive the mixing shaft in the mixing tank to rotate and ensure the uniform mixing of concrete.
Manufacturing Technology
Our TRUCKMAN dump trucks, cargo trucks, mixer trucks, tanker trucks, etc. are available in many different materials, such as Q235 carbon steel, Q355 manganese steel, T700 high-strength steel and so on. However, all of them need to be processed with a laser cutting machine first. We use laser cutting machine for cutting, and this cutting technology can improve the cutting precision, ensure the cutting quality, and speed up the cutting speed and shorten the production time.
Customer Visits And Feedback
Customer Visits
The customers came to our company to visit the factory and production line, we introduced the production process and related details to them, the customers raised questions and concerns during the visit, our business answered them in detail, and the customers expressed their confidence in our cooperation. Subsequently, we made relevant plans according to the customer's needs and signed a cooperation contract to reach a friendly cooperation.
Customer Feedback
A customer from Zambia bought a mixer truck from us for building construction site. We recommended the right capacity mixer truck according to the customer's needs, now the customer has received the truck and put it into use, the customer is very satisfied with our truck. Now he is planning to purchase 8 more mixer trucks for use in order to improve the work efficiency and shorten the working time.
Rust Proofing And Wax Spraying
Before SHACMAN F3000 mixer truck is shipped from our factory, we will carry out the wax spraying treatment. The film formed by the wax spraying can effectively isolate the moisture and oxygen in the air, preventing these elements from coming into contact with the metal surface, thus avoiding rust and corrosion. When transporting, we will wrap the truck with a waterproof tarpaulin to better isolate the cold air and seawater from the outside world, avoiding the problem of rust during transportation and prolonging the service life of the truck body.
After Sales Service
We use our own parts warehouse and can provide after-sales parts service to our customers. Through regular maintenance and replacement of spare parts, we can effectively prevent vehicle breakdowns and ensure the normal operation of the vehicle's major systems (e.g., brakes, tires, lamps, etc.), which can significantly improve driving safety and the service life of the truck. In addition, through timely repair and maintenance, it also helps to reduce repair costs and downtime.
Certifications
We have CNCA, CO, CE and other qualification certificates, which meet the different requirements for semi-trailers in many countries around the world, and can be exported to different countries and regions smoothly to meet the local standards for safety, environmental protection, quality and so on. They are manufactured with strict quality testing for high safety, and also meet international emission standards, which helps to protect the environment.
Ocean Bill Of Lading
This is the ocean bill of lading for Sierra Leone customer and Uganda customer who purchased tractor truck, semi-trailer and dump truck from our company, we recommended trucks and semi-trailers that are more suitable for local use according to customer's needs. After the production was completed, we shipped the products in time and the customer received the products soon. Now, these customer has put the trucks and semi-trailers into use and is very satisfied with our products.
Company And Personal Profile
Company Profile
JINAN TRUCKMAN AUTOMOBILE Co., Ltd. Was established in year 2010, that mainly focus on SINOTRUK, SHACMAN, BEIBEN, FOTON All series new trucks, and all China brand new construction machinery, CIMC and TRUCKMAN semi-trailers And full Trailers export business. The goods can meet all certificate and different work demand, such as BV, SGS, CO, CIQ, GCC, SONCAP, FORM E, ADR certificate etc, also with reasonable price. With years development, our business extended to more than 60 more countries and regions in the world like Nigeria, Angola, Ghana, Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia, Laos, Myanmar even Latin America countries like Chile, Peru...We take"Quality, Honesty, Responsibility" as our enterprise core value to make you best cooperation experience. TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission with professional services, and are committed to becoming a world-class enterprise with international characteristics.
Personal ProfileThis is Eileen from TRUCKMAN, China. As a professional foreign trade salesman, I know a lot about the truck industry. I am skillful in mastering various truck types and their application scenarios, understand the related truck technical parameters, and can recommend product configurations that are more suitable for local use according to customers' needs and in combination with the countries and regions where the customers are located.I am familiar with the South American Market and have exported various types of trucks to the local market many times. In the process of communication with customers, I understand and respect their customs and business habits, always customer-centered, patiently listen to customer comments and feedback, solve problems in a timely manner, and provide them with quality service and support. In the subsequent order arrangement, I also pay great attention to details to ensure that the contract, order and transportation arrangements are accurate. As a result, I have received a consistent degree of recognition from local customers.
